Southern Pacific Railroad

STEAM Locomotive Folio Diagrams 1951

***NO DIESELS...NO DIESELS...NO DIESELS***

A Modeler's Reference

Edited & restored by Tim Mulina, BHI Publications

This book has heavy duty, laminated cardstock covers and is 8 1/2" wide and 11" tall.

Sample pages are below.

MSRP $34.99 + s&h

(s&h is adjusted correct for US addresses only, Int'l orders contact us)

This book contains drawings of Southern Pacific's Steam Locomotive operating throughout the system. They range from Yard Goats up through the Daylight GS series and the AC Cab Forward series of locos as well as the "normal" freight equipment that was seen in the twilight of steam on the system.

The drawings are essentially blueprints that a skilled employee could recognize, repair, and service equipment that was in use. They also provided unit number data.

This data is something that each railroad had on hand for their crews operating

the trains and the shops in the areas concerned. In the case where repairs

were necessary these were used to help restore damaged equipment.

Due to the poor quality of the originals many of the folios required editing.

This book has 125 pages with 125 Diagrams, Illustrations, & tables.

BHI front page      Quick Pic Books     Aviation front page     Bookmarks & Magnets

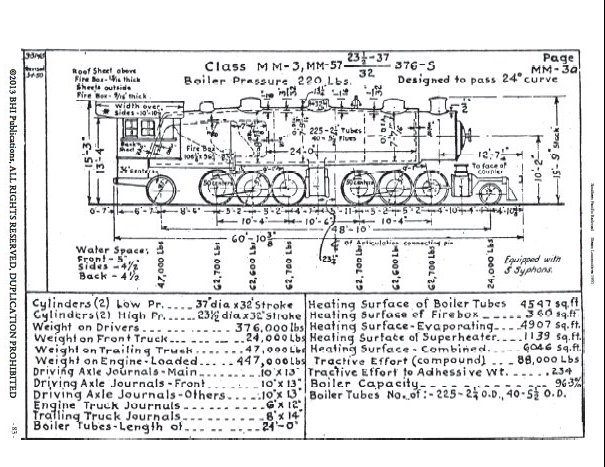

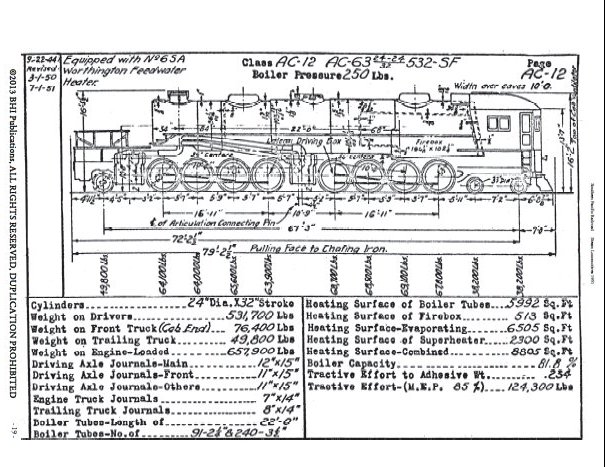

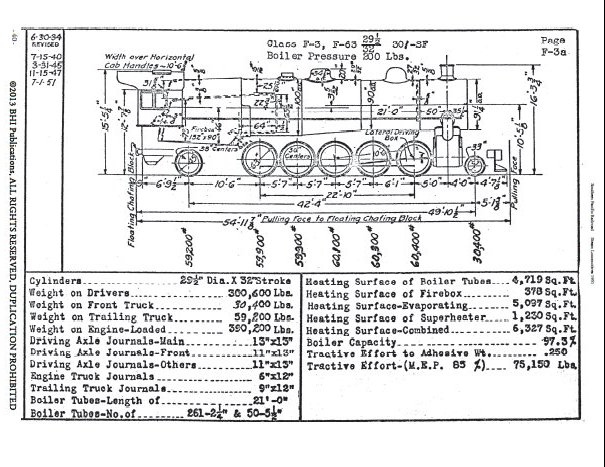

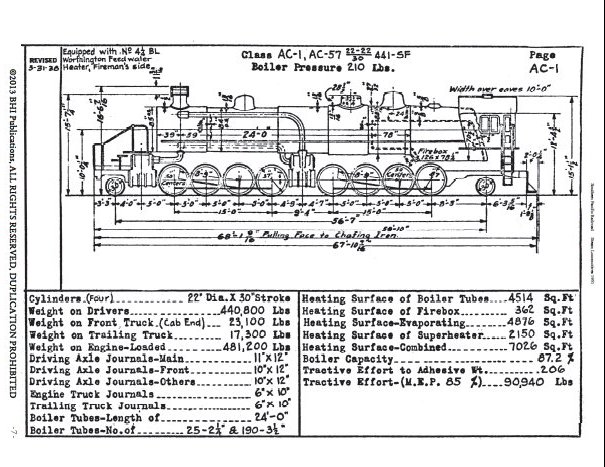

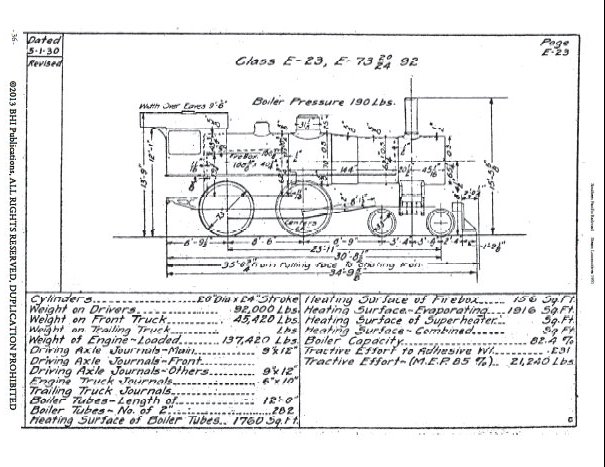

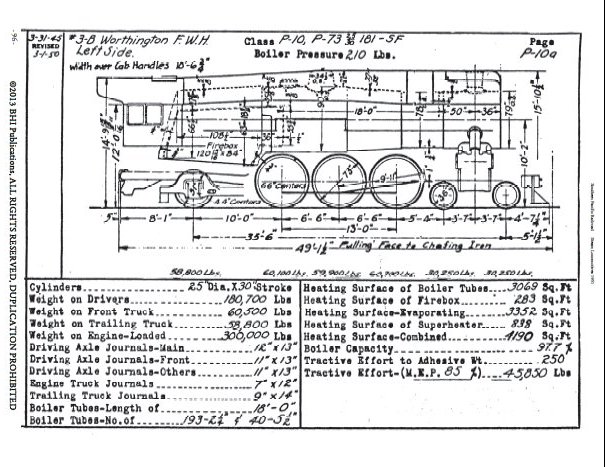

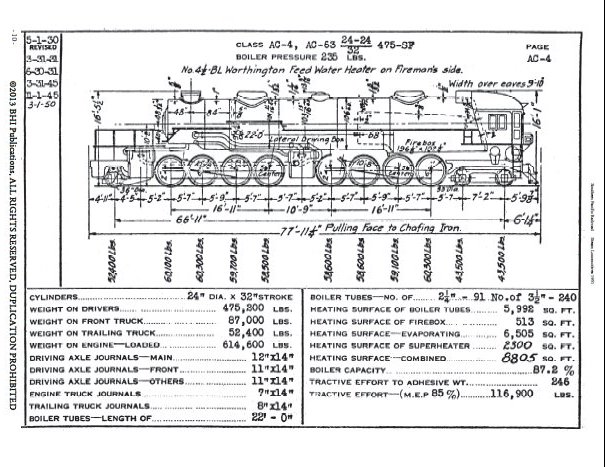

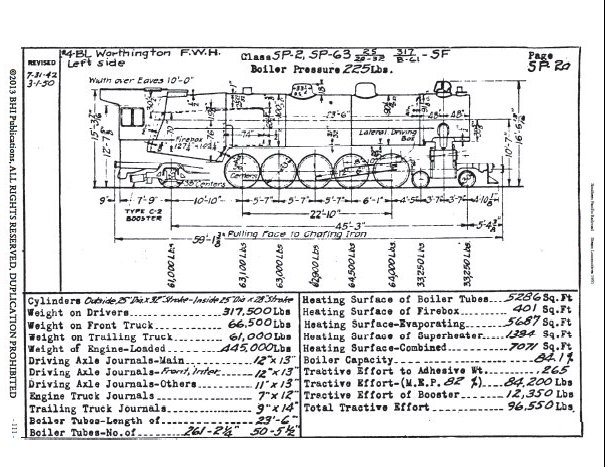

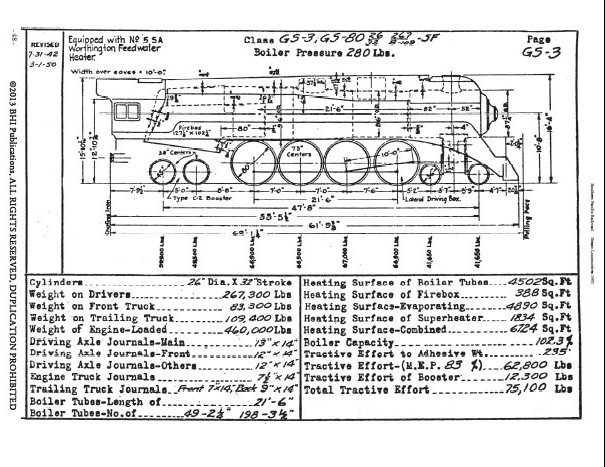

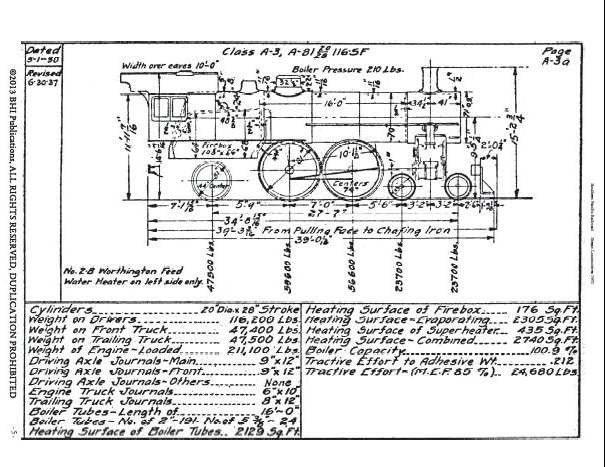

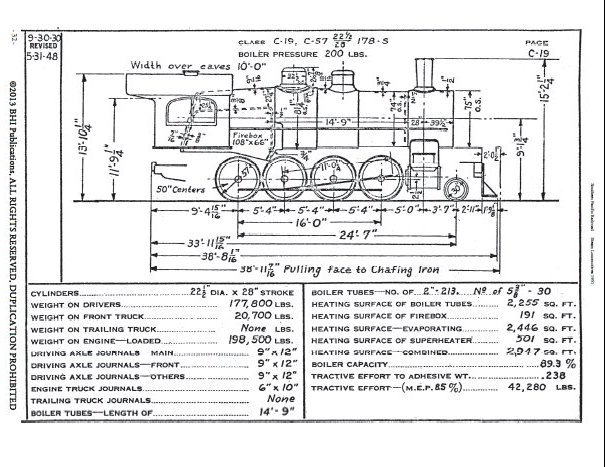

Below are some sample pages from the book.
