Nickel Plate Road

Freight Car Folio Diagrams 1947

Passenger Car Folio Diagrams 1954

A Modeler's Reference

Edited & restored by Tim Mulina, BHI Publications

This book has heavy duty, laminated cardstock covers and is 8 1/2" wide and 11" tall.

Sample pages are below.

MSRP $34.99 + s&h

(s&h is adjusted correct for US Addr. only. Int'l Addr., contact us for correct rate e mail   [email protected] )

This book contains both the Freight Cars of 1947 AND the Passenger Cars of 1954

in one book. The post war years were times for America's railroads to

rebuild after the 24/7 operations supporting the war efforts. While

some of the equipment is even pre war vintage in these books, much

had been rebuilt or even replaced in main line service by this time.

These drawings are essentially blueprints that a skilled employee could

recognize, repair, and service equipment that was in service.

This data is something that each railroad had on hand for their crews operating

the trains and the shops in the areas concerned. In the case where repairs

were necessary these were used to help restore damaged equipment.

Due to the poor quality of the originals many of the folios required editing

This book has 90 pages with 88 folios & tables.

BHI front page      Quick Pic Books     Aviation front page     Bookmarks & Magnets

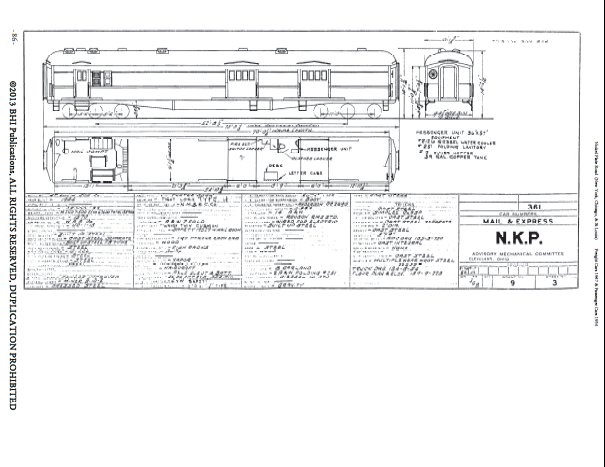

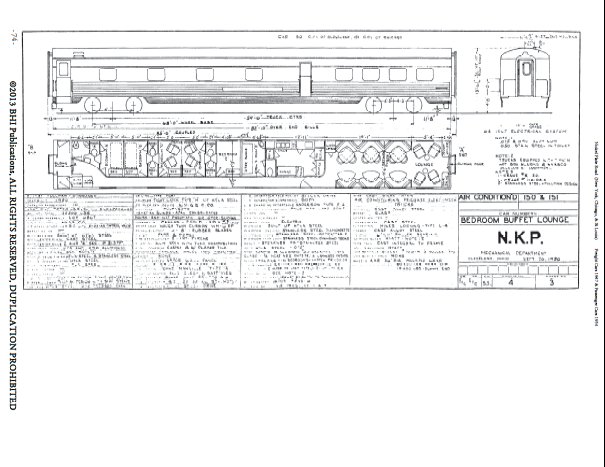

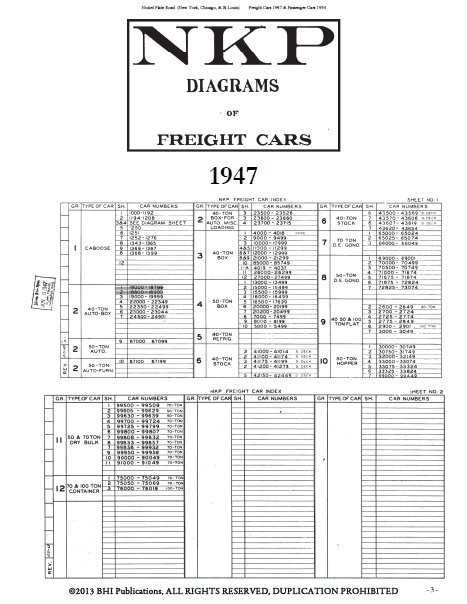

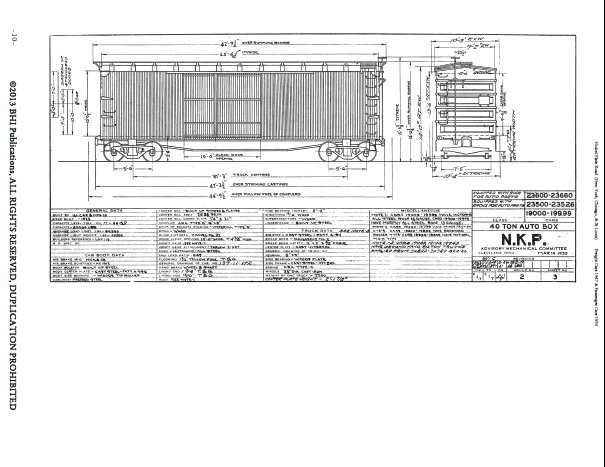

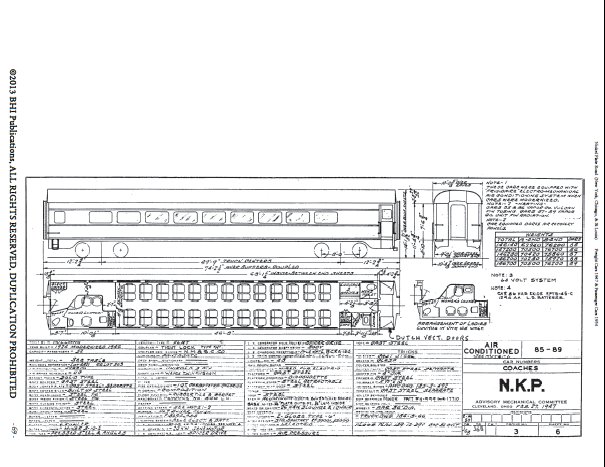

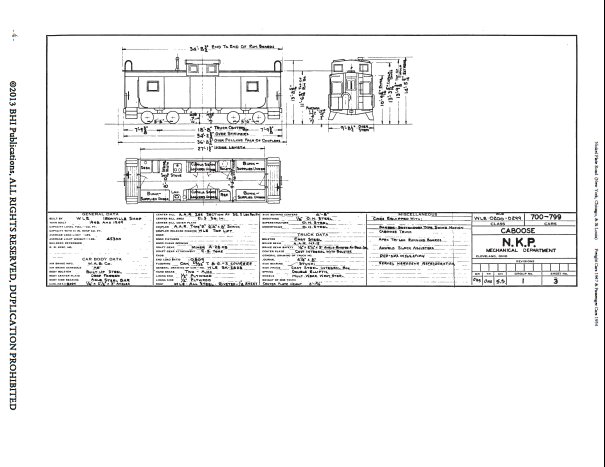

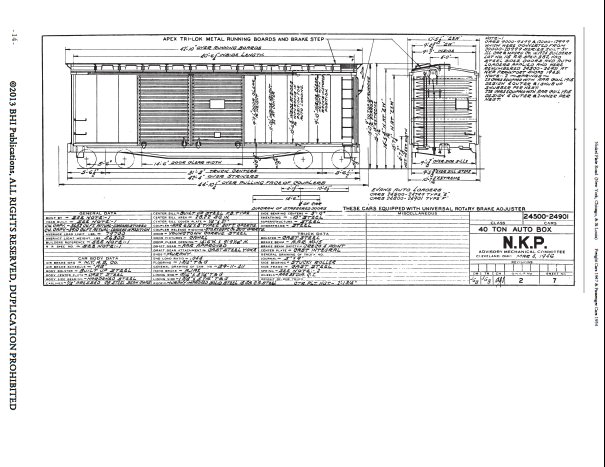

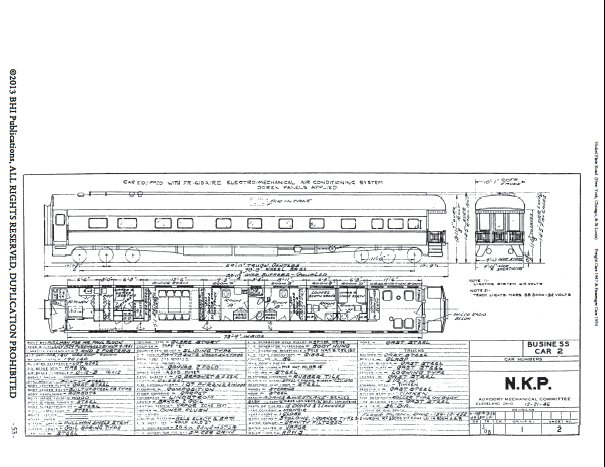

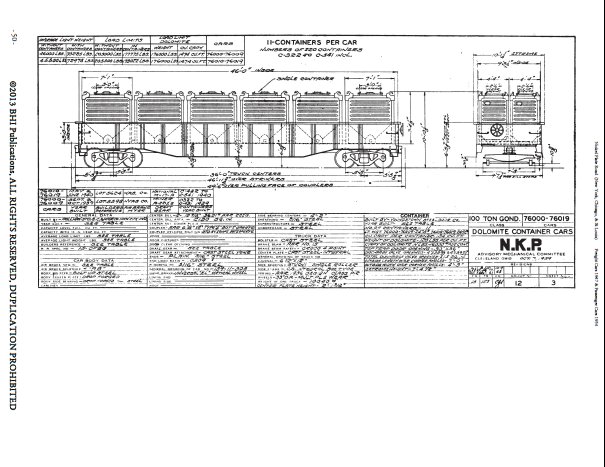

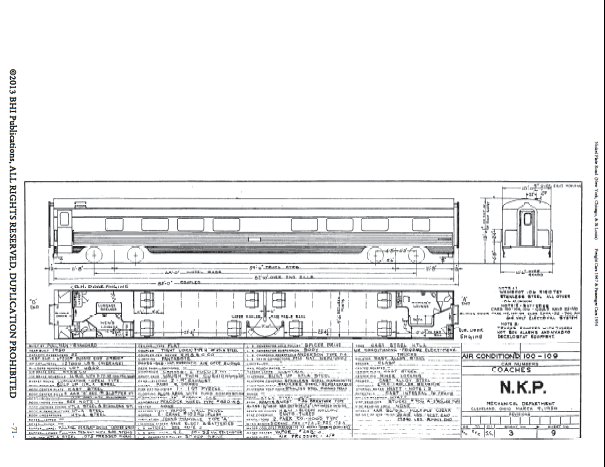

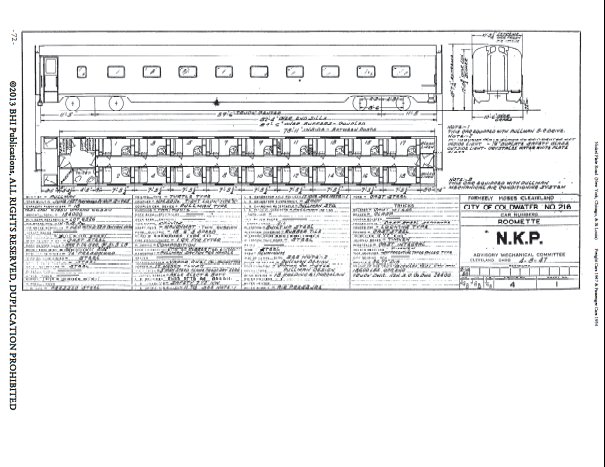

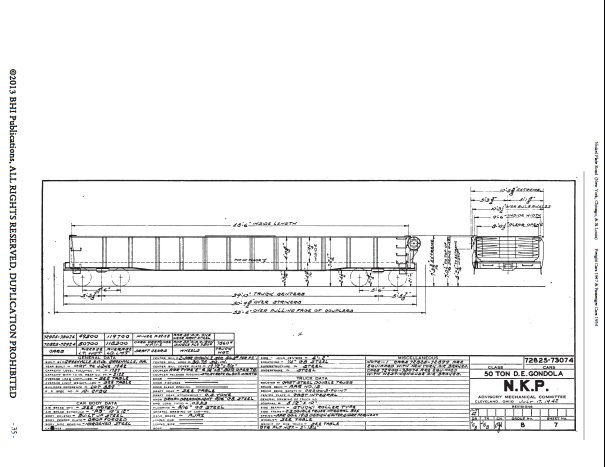

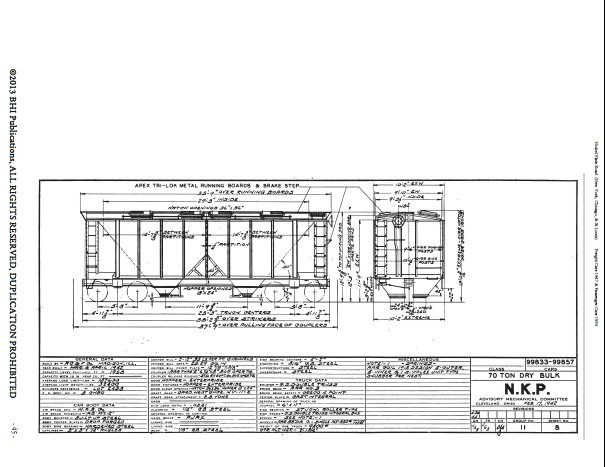

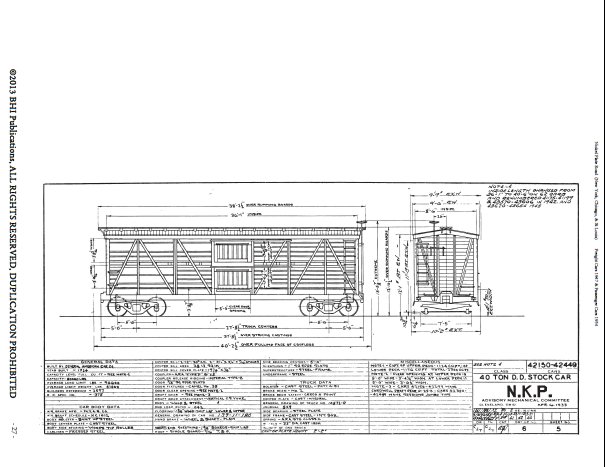

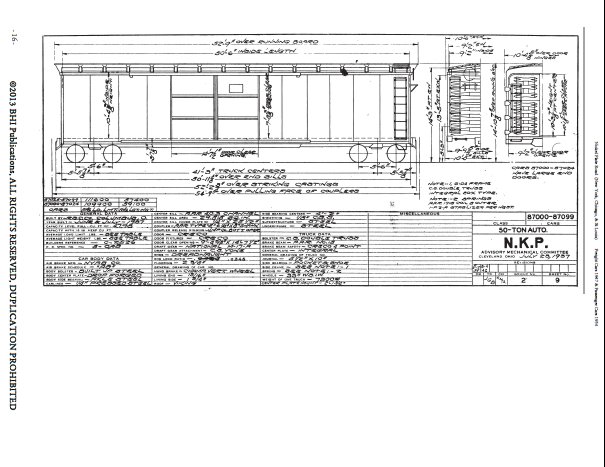

Below are some sample pages from the book.
