New York Central Railroad System

Passenger Car Folio Diagrams of the NYC Railroad System

1966

A Modeler's Reference

Edited & restored by Tim Mulina, BHI Publications

This book has heavy duty, laminated cardstock covers and is 8 1/2" wide and 11" tall.

Sample pages are below.

MSRP $29.99 + s&h

(s&h is adjusted correct for US Addr. only. Int'l Addr., contact us for correct rate e mail   [email protected] )

This book contains drawings of the equipment that was operating

throughout the New York Central Railroad System just before PC then

Amtrak. It includes not only the normal long distance cars but also Suburban

and Commuter Cars, a large number of Business and Inspection cars,  Heavy

and lightweight cars of steel & aluminum, RDC's , and even the FlexiVan Cars.

The drawings are essentially blueprints that a skilled employee could recognize, repair, and service equipment that was in service. While much of the equipment

in here was built for the NYC and subsidiary lines some was built by them

in their own shops using their own designs and copies of proven designs.

This data is something that each railroad had on hand for their crews operating

the trains and the shops in the areas concerned. In the case where repairs

were necessary these were used to help restore damaged equipment.

Due to the poor quality of the originals many of the folios required editing

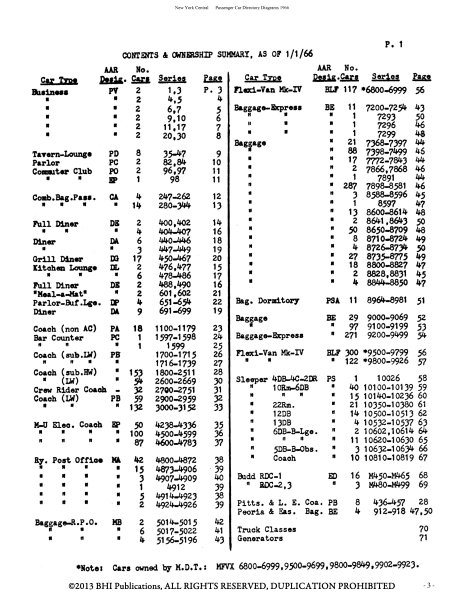

One of the most special parts of this book is that it contains the roster of

the passenger type cars for the road in table form and gives details specific

to a given car in many cases where those differ from the rest of the class

such as when they may have been modified for a different use on the road.

This book has 69 pages with 68 folios & tables.

BHI front page      Quick Pic Books     Aviation front page     Bookmarks & Magnets

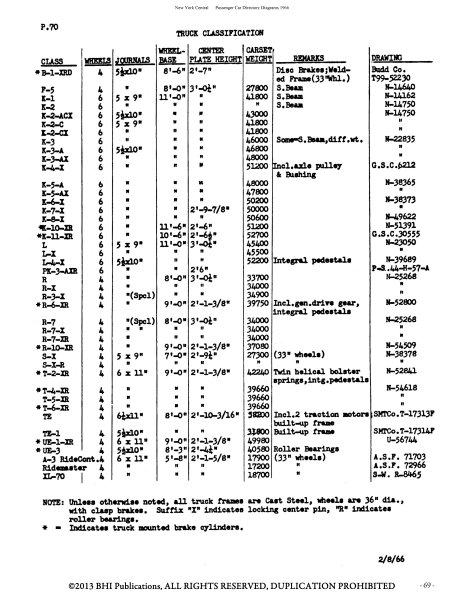

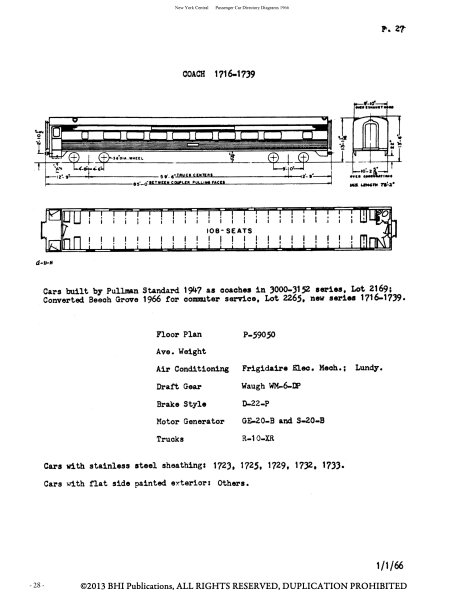

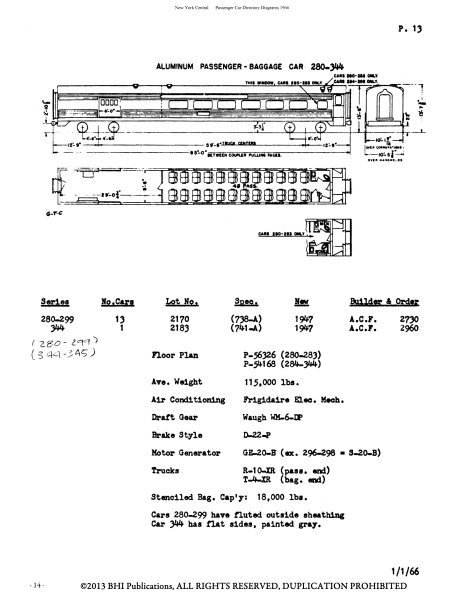

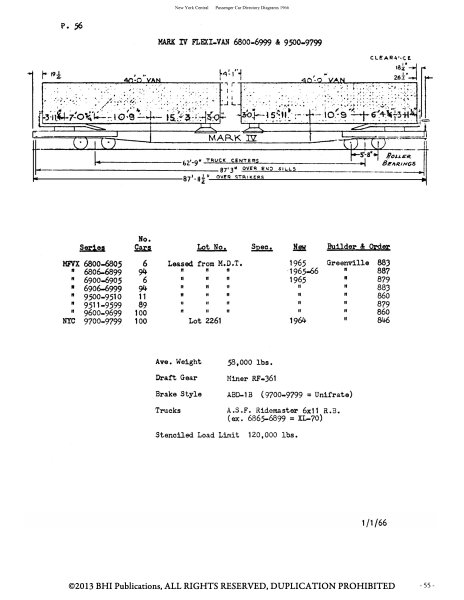

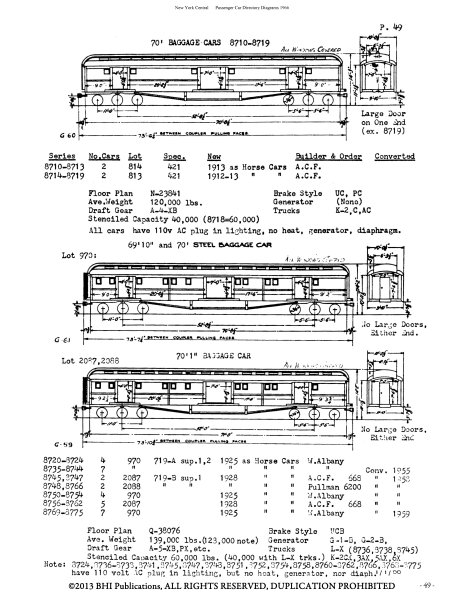

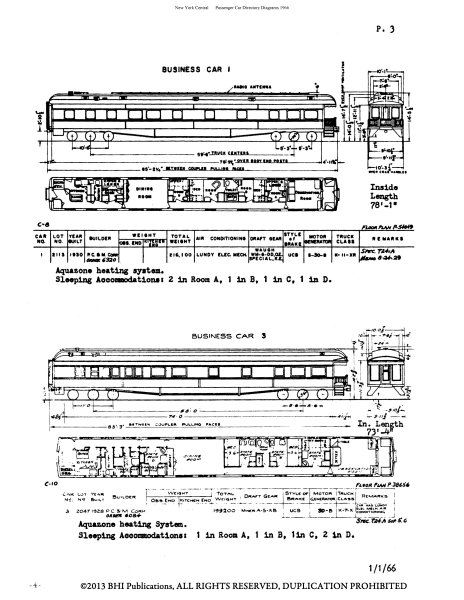

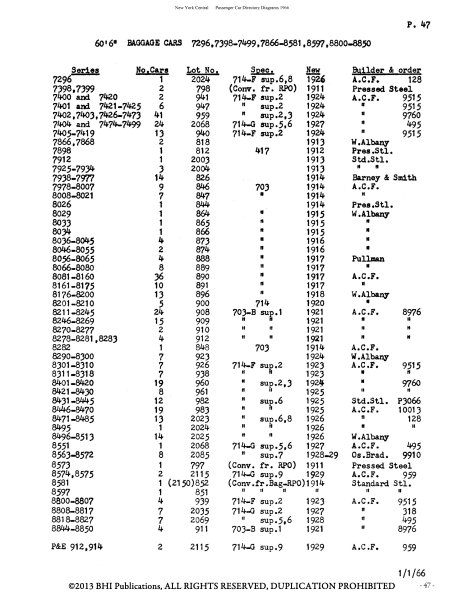

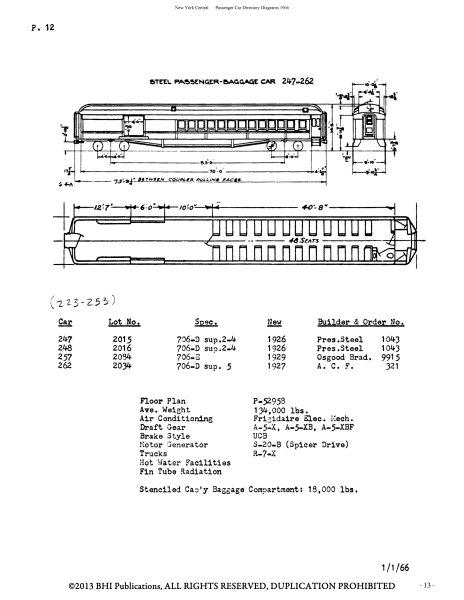

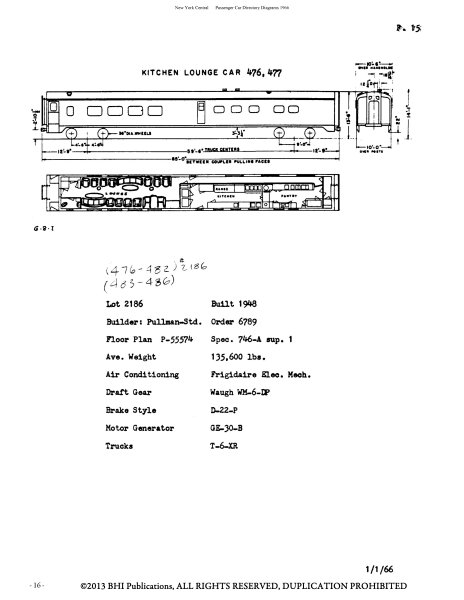

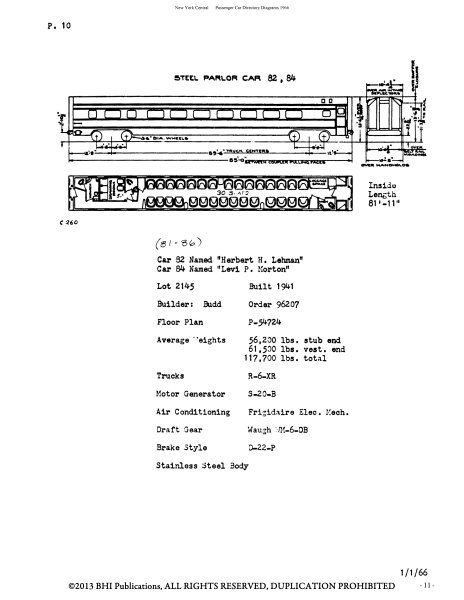

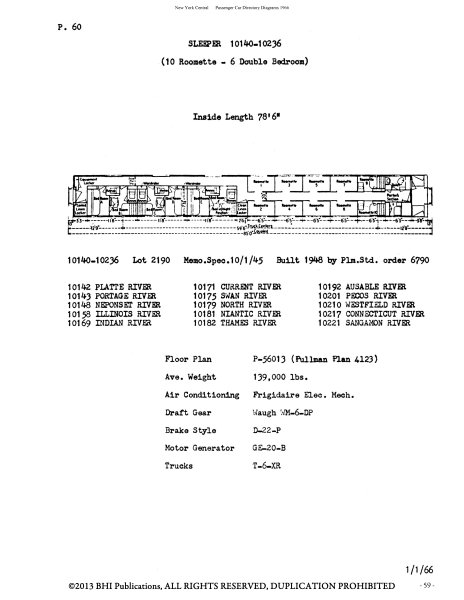

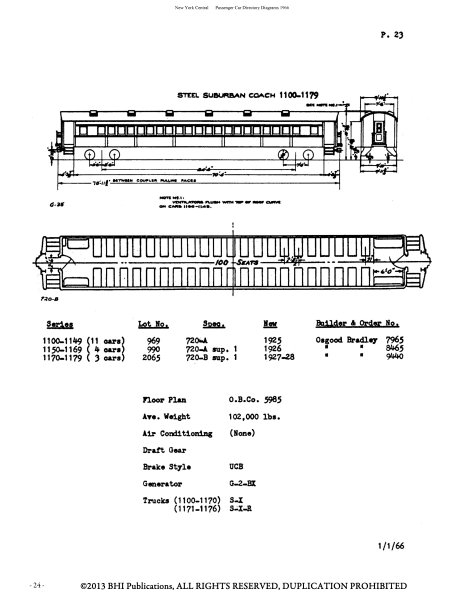

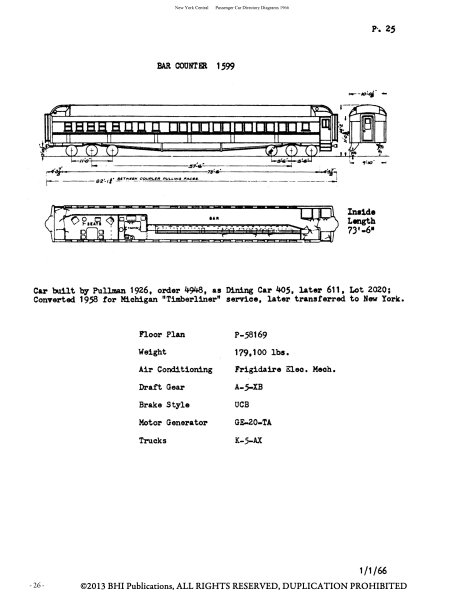

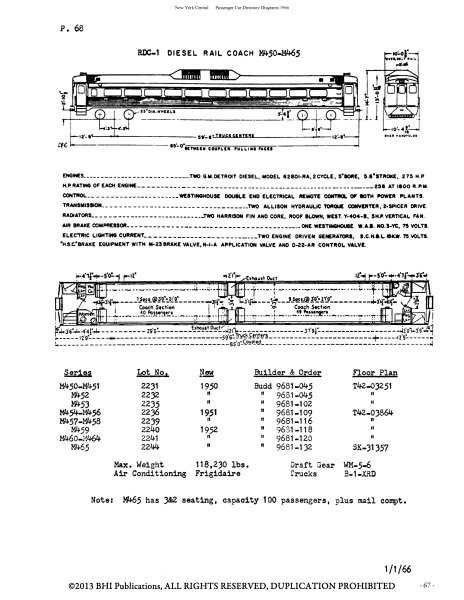

Below are some sample pages from the book.
