New York Central Railroad System
Passenger Car Folio Diagrams 1940, revised 1944
VOLUME 1 of 2 (the general index is only in Vol 1)
A Modeler's Reference
Edited & restored by Tim Mulina, BHI Publications
This book has heavy duty, laminated cardstock covers and is 8 1/2" wide and 11" tall.
Sample pages are below.
MSRP $34.99 + s&h
(s&h is adjusted correct for US Addr. only. Int'l Addr., contact us for correct rate e mail [email protected] )

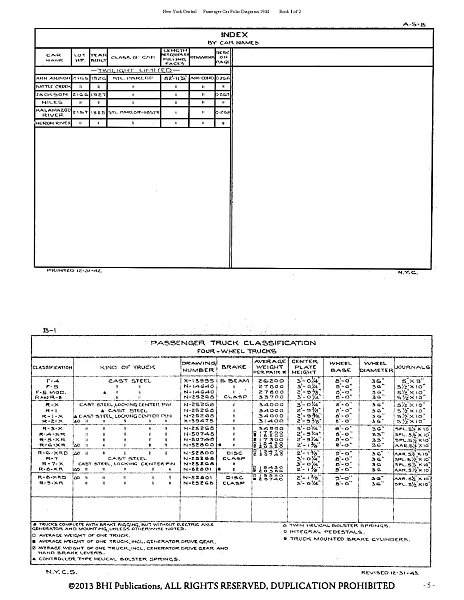

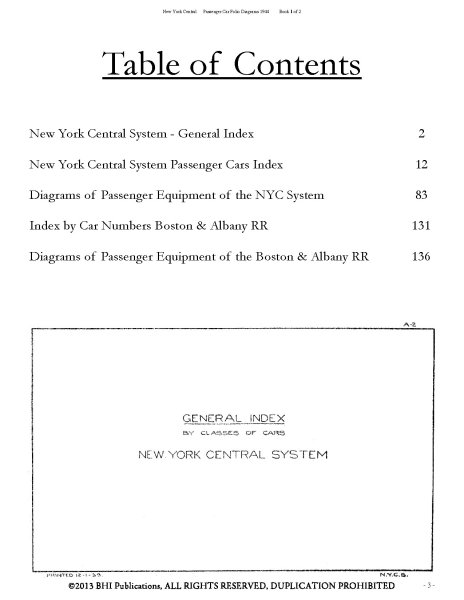

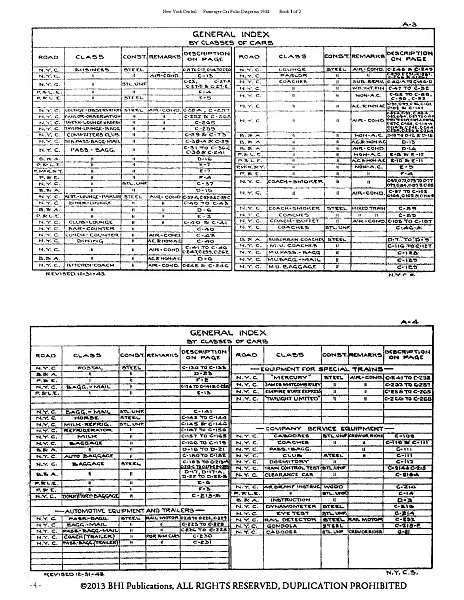

This book contains the GENERAL INDEX which has the "owning" Road
within the System, the primary construction material of the car,
remarks such as what type air conditioning system or power the car
may be equipped with, and then the description. It tells about the
general classes of varnish but does not get into specific car number

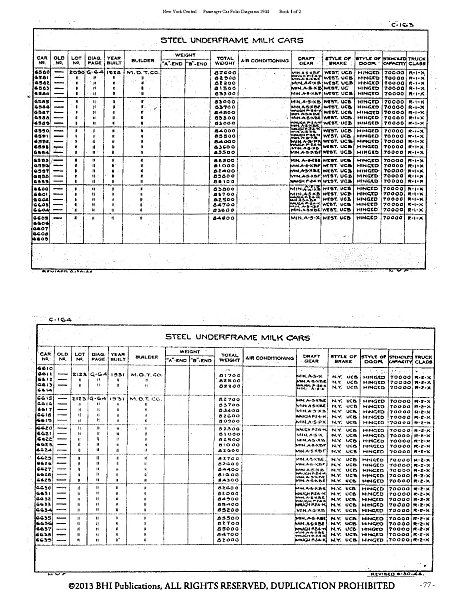

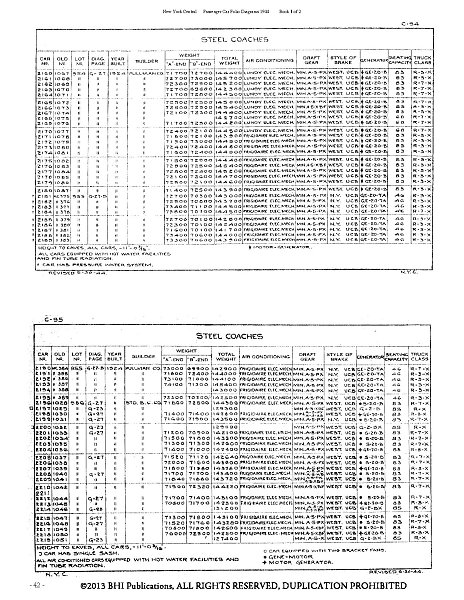

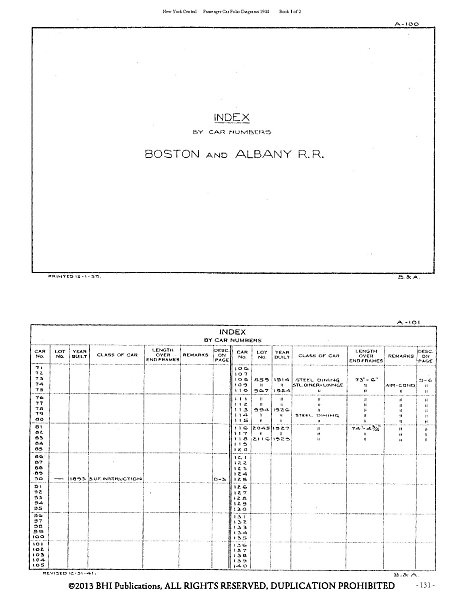

info and fills the first 10 pages or so. After that is the passenger car
index which gives specific information by car number including any
renumbering, dimensions, lot number, year built and builder name,
weight, draft gear, type of brake, door style and truck capacity.
As could be expected, the Central had a large number of
business cars which are represented here plus many
speciality cars such as Clearance, Air Brake Instruction,
and also Express type refrigerator cars.

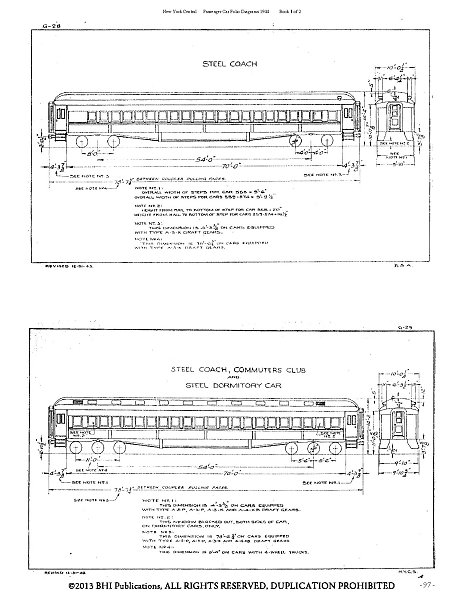

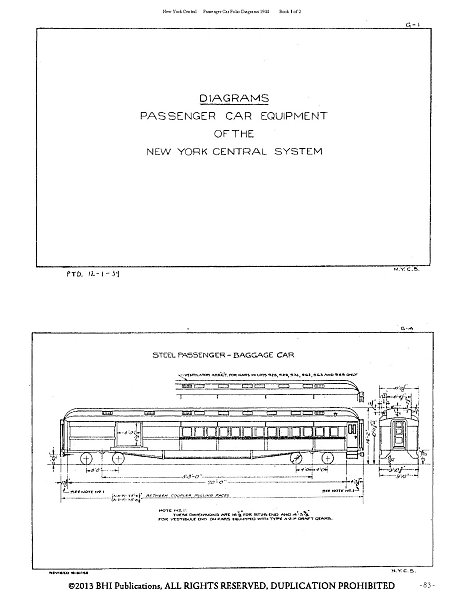

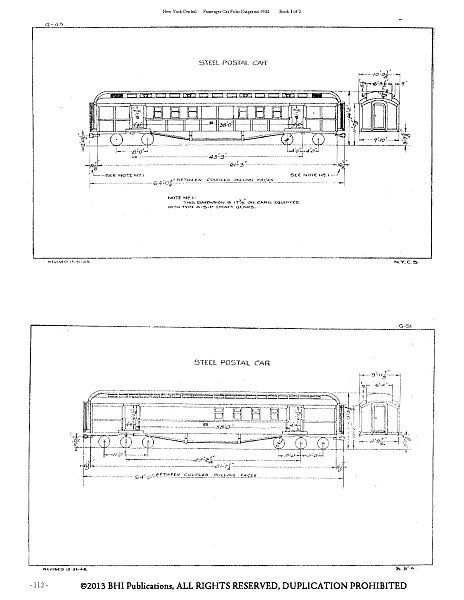

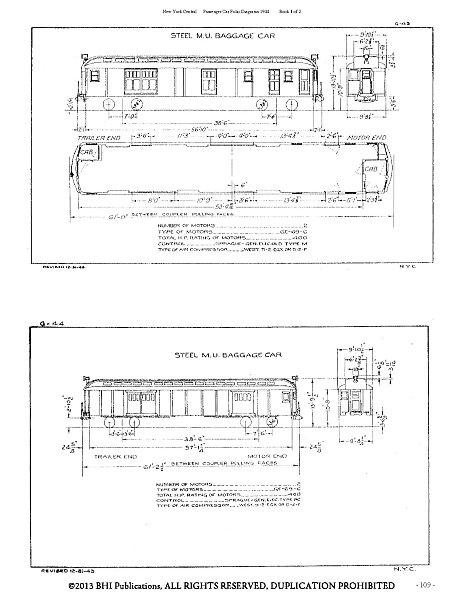

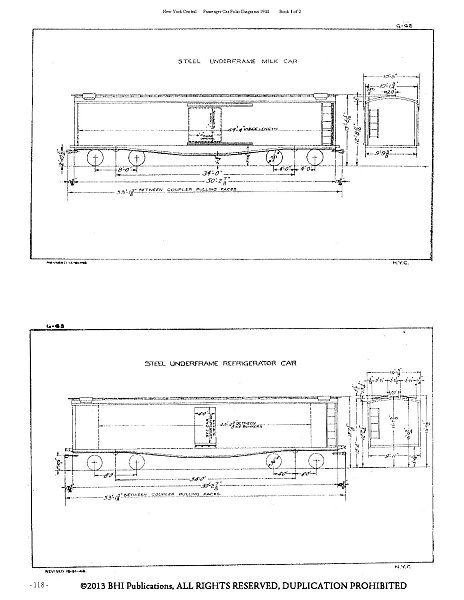

The drawings are essentially blueprints that a skilled employee could recognize, repair, and service equipment that was in service. While much of the equipment
in here was built for the NYC and subsidiary lines some was built by them
in their own shops using their own designs and copies of proven designs.
This book has 128 pages with 493 folios & tables.

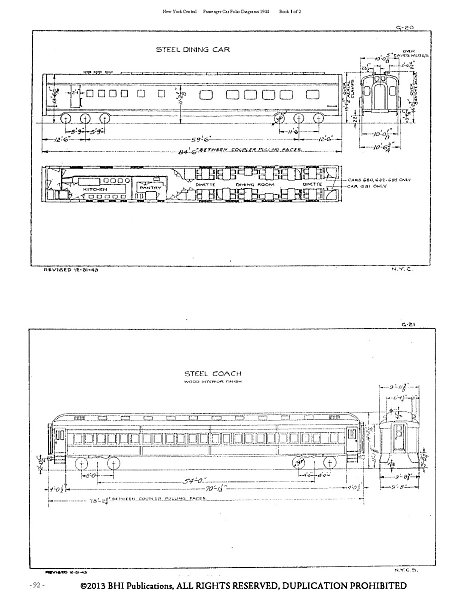

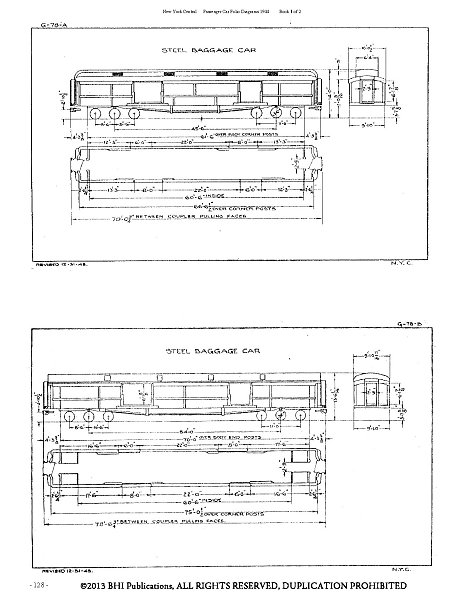

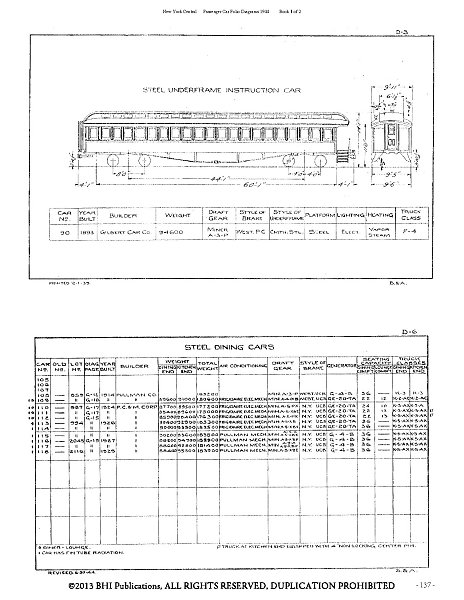

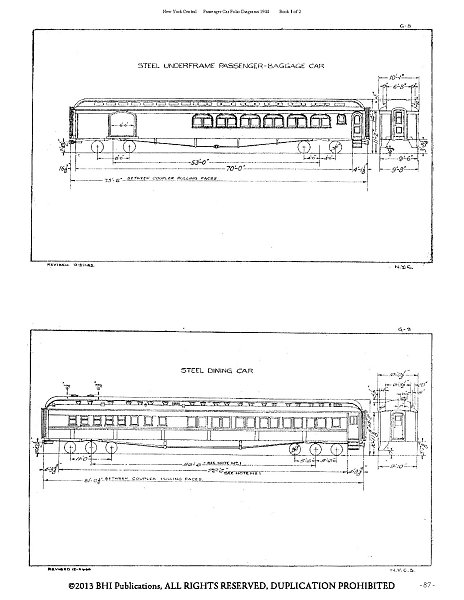

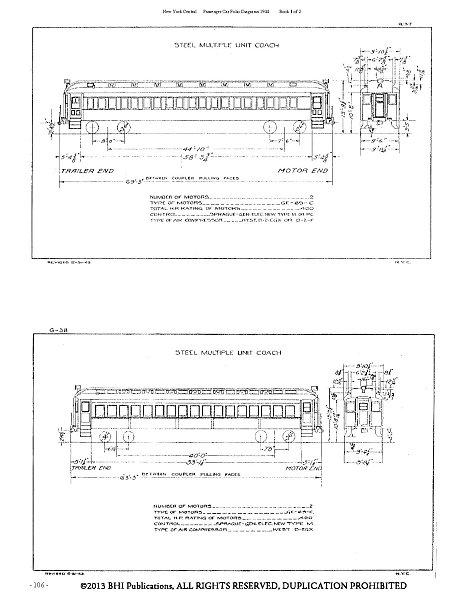

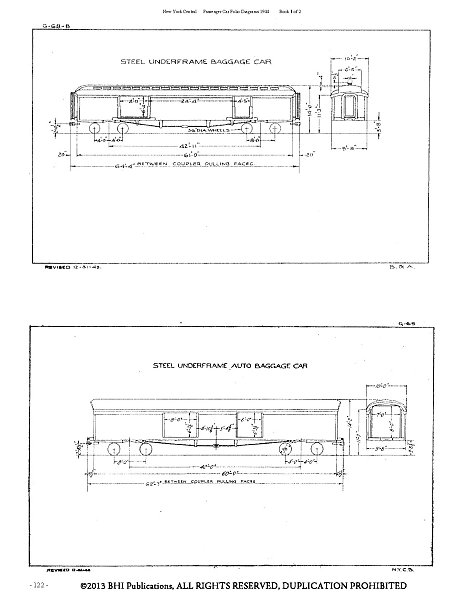

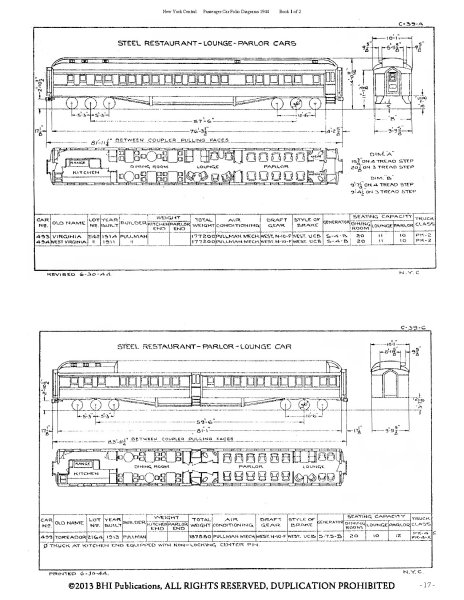

Below are some sample pages from the book.
