New York Central Railroad System

Electric and Diesel Locomotive Folio Diagrams of the NYC Railroad System

1967

A Modeler's Reference

Edited & restored by Tim Mulina, BHI Publications

This book has heavy duty, laminated cardstock covers and is 8 1/2" wide and 11" tall.

Sample pages are below.

MSRP $29.99 + s&h

(s&h is adjusted correct for US Addr. only. Int'l Addr., contact us for correct rate e mail   [email protected] )

This book contains drawings of the equipment that was operating

throughout the New York Central Railroad System in the years

leading up to Penn Central and the end of the separate NYC.

The drawings are essentially blueprints that a skilled employee could recognize, repair, and service equipment that was in service. While much of the equipment

in here was built for the NYC and subsidiary lines some was built by them

in their own shops using their own designs and copies of proven designs.

This data is something that each railroad had on hand for their crews operating

the trains and the shops in the areas concerned. In the case where repairs

were necessary these were used to help restore damaged equipment.

Due to the poor quality of the originals many of the folios required editing.

Included are all the major Loco types and subtypes used throughout the

system, both diesel and electric. In most cases this includes tables with

unit numbers and other specific data for those classes and sub groups.

By this time in the history of the NYC, there were a lot fewer classes

but larger number of units of each class. This book covers 2108 locomotives.

This book has 86 pages with 85 folios & tables.

BHI front page      Quick Pic Books     Aviation front page     Bookmarks & Magnets

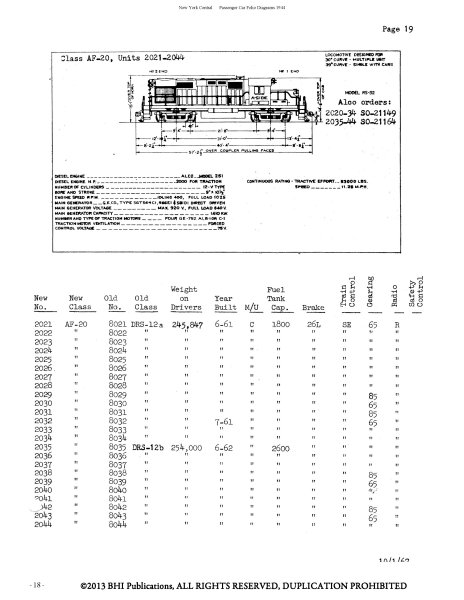

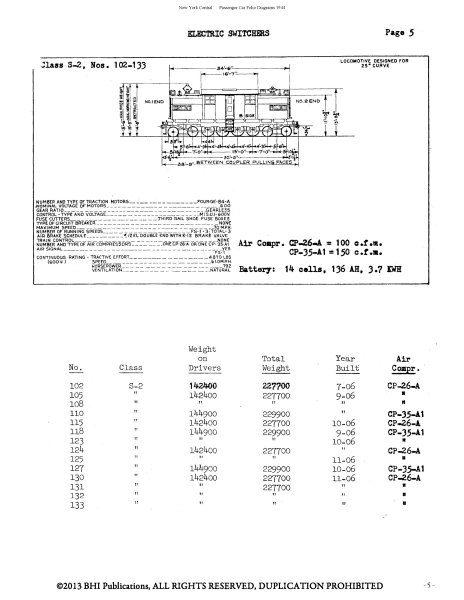

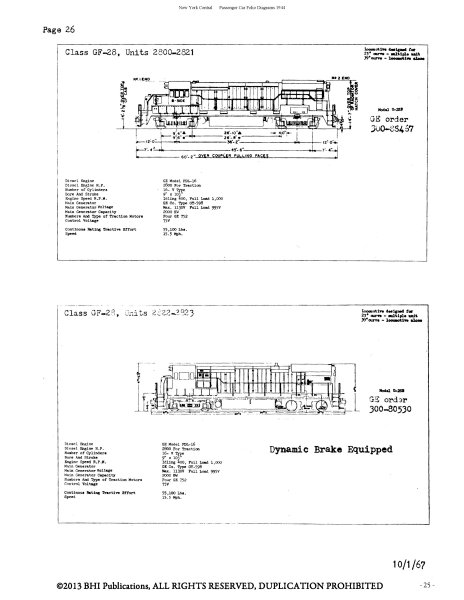

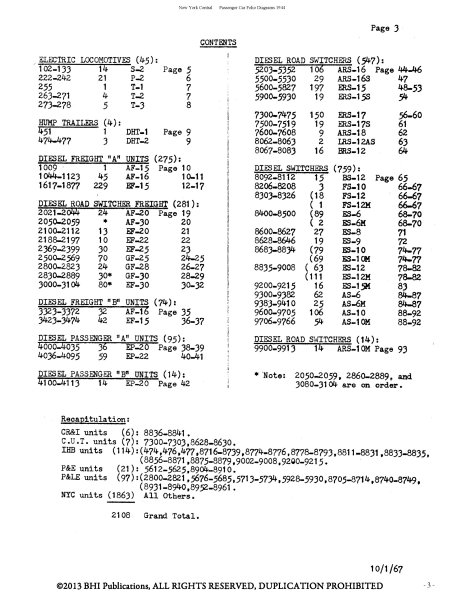

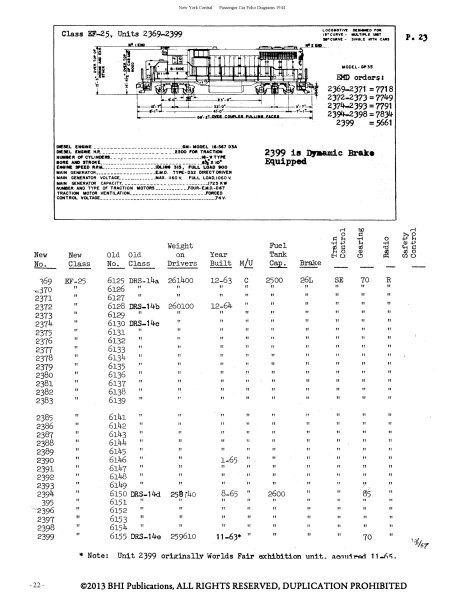

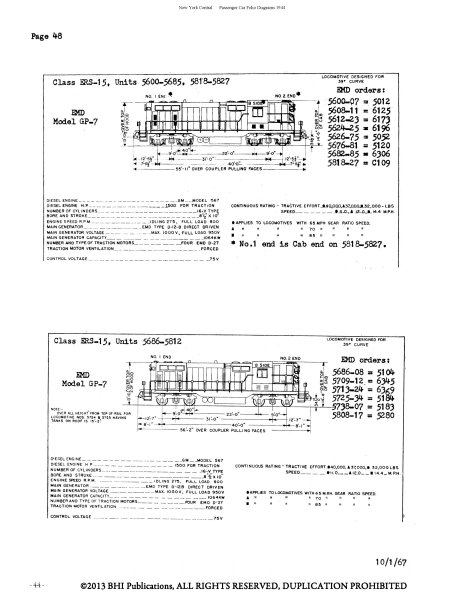

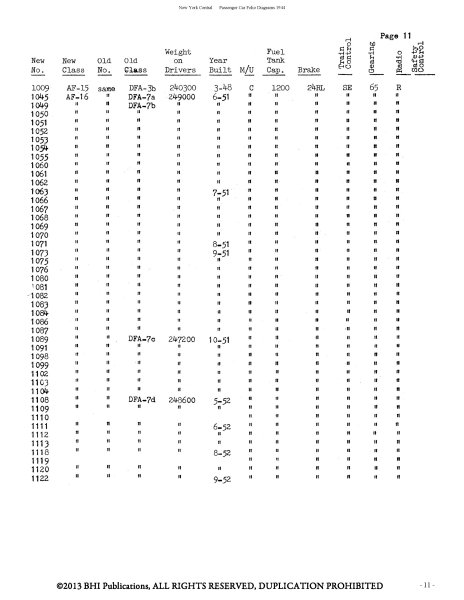

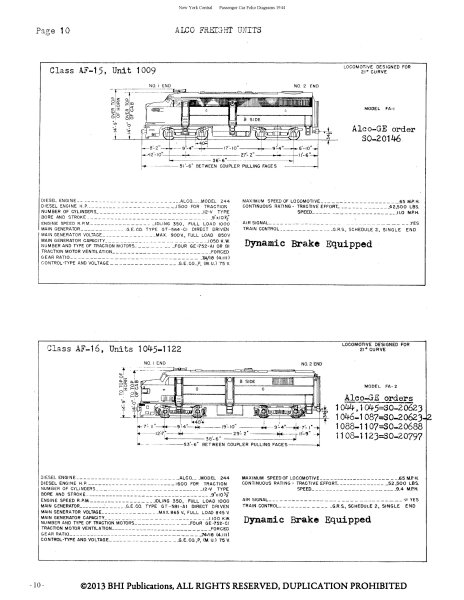

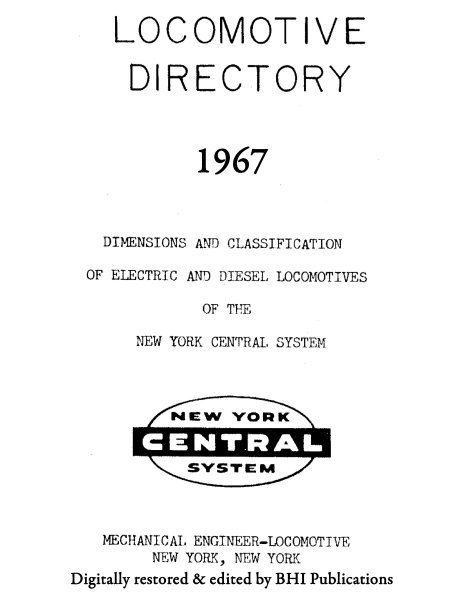

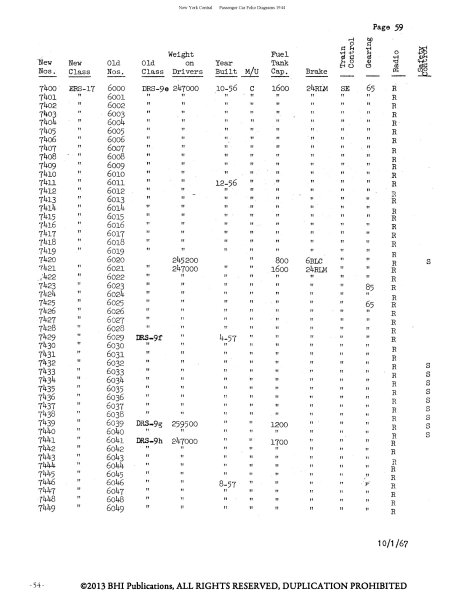

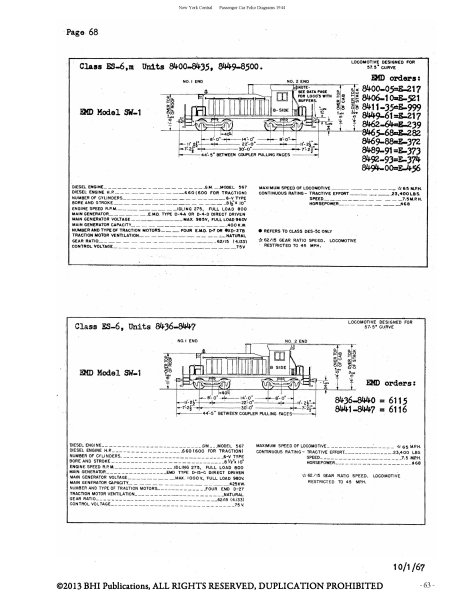

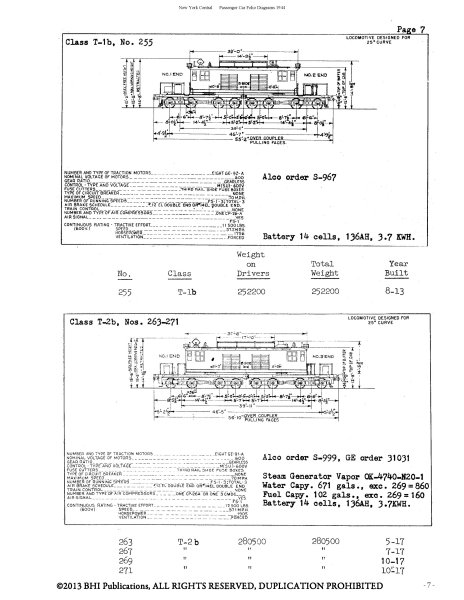

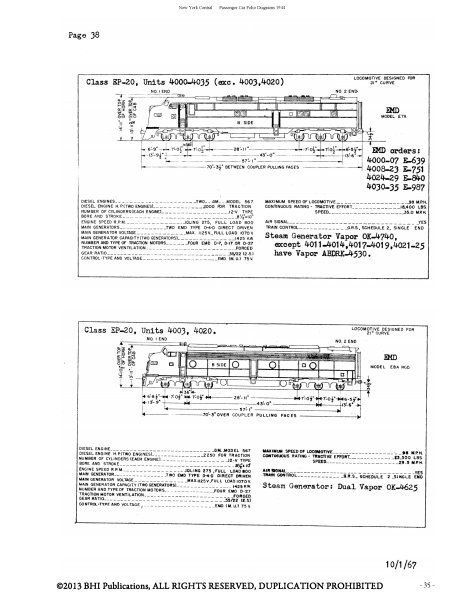

Below are some sample pages from the book.
