Maine Central Railroad

Motive Power Equipment Folio Diagrams  1923, 1924, 1947, 1956

(Includes Sandy River & Rangeley Lakes, Bridgton & Saco River, Portland Terminal in some)

A Modeler's Reference

Edited & restored by BHI Publications

This book has heavy duty, laminated cardstock covers and is 8 1/2" wide and 11" tall.

Sample pages are below.

MSRP $34.99 + s&h

(s&h is adjusted correct for US addresses only, Int'l orders contact us)

The drawings are essentially blueprints that a skilled employee could recognize, repair, and service equipment that was in use. They also provided unit number data.

This data is something that each railroad had on hand for their crews operating

the trains and the shops in the areas concerned. In the case where repairs

were necessary these were used to help restore damaged equipment.

Due to the poor quality of the originals many of the folios required editing.

This book has 93 pages with 101 Diagrams & Illustrations

BHI front page      Quick Pic Books     Aviation front page     Bookmarks & Magnets

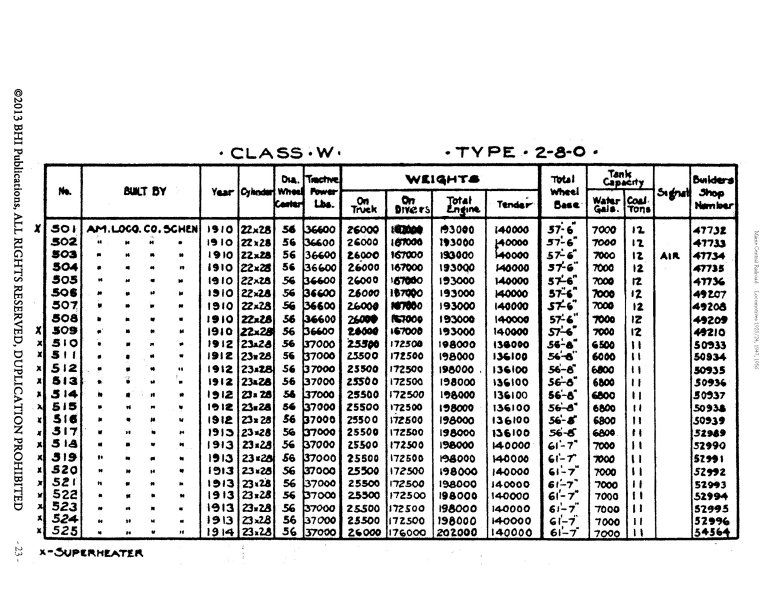

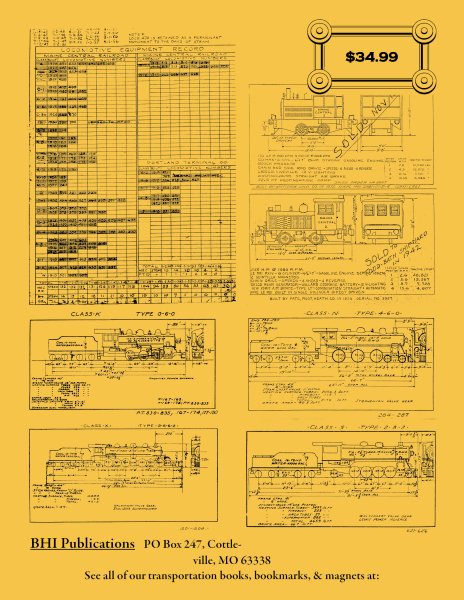

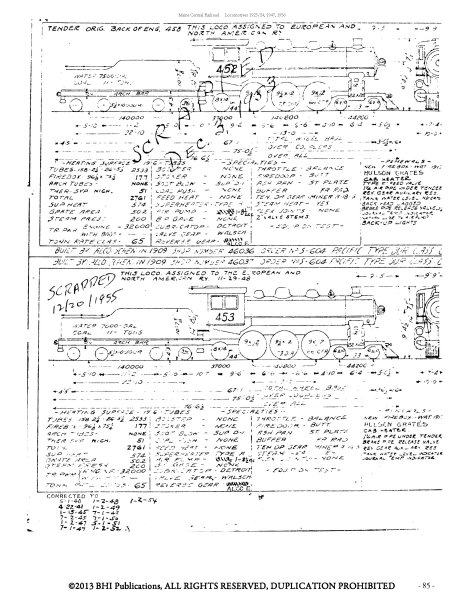

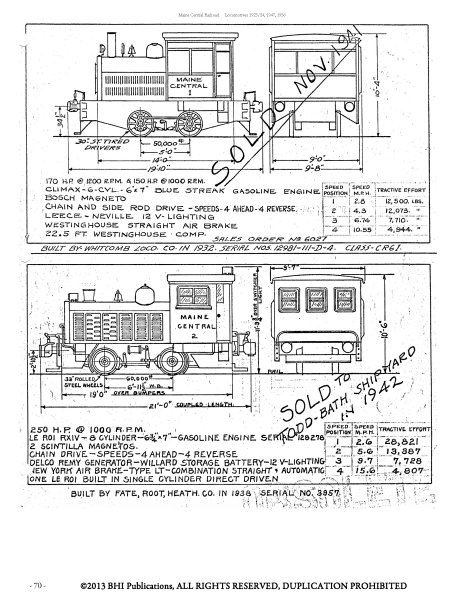

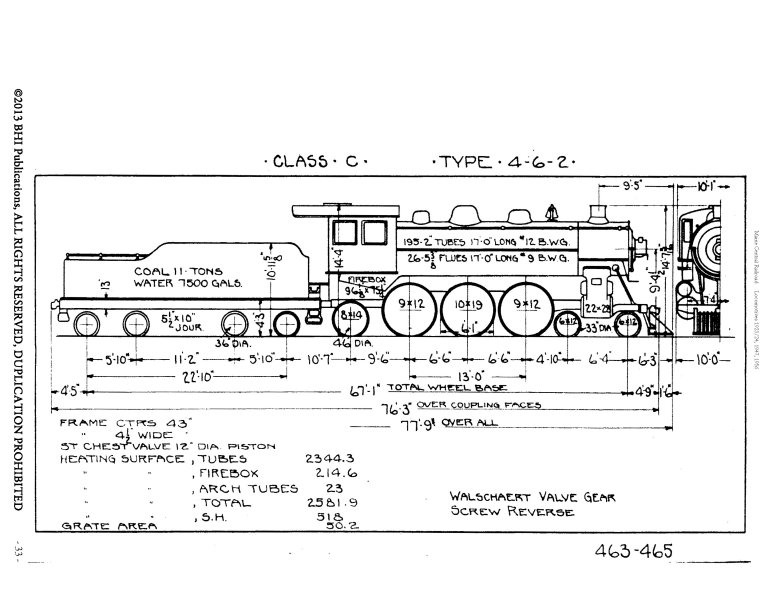

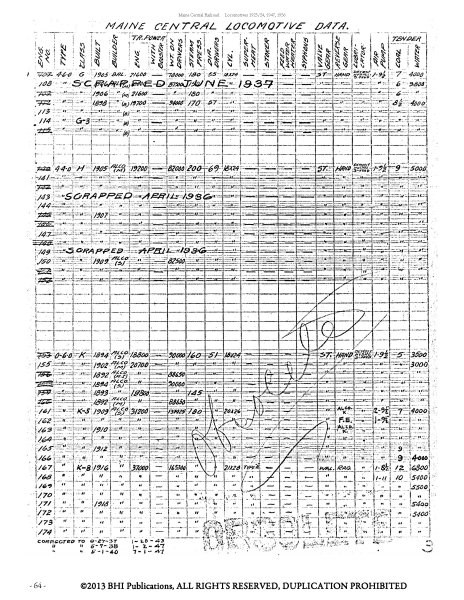

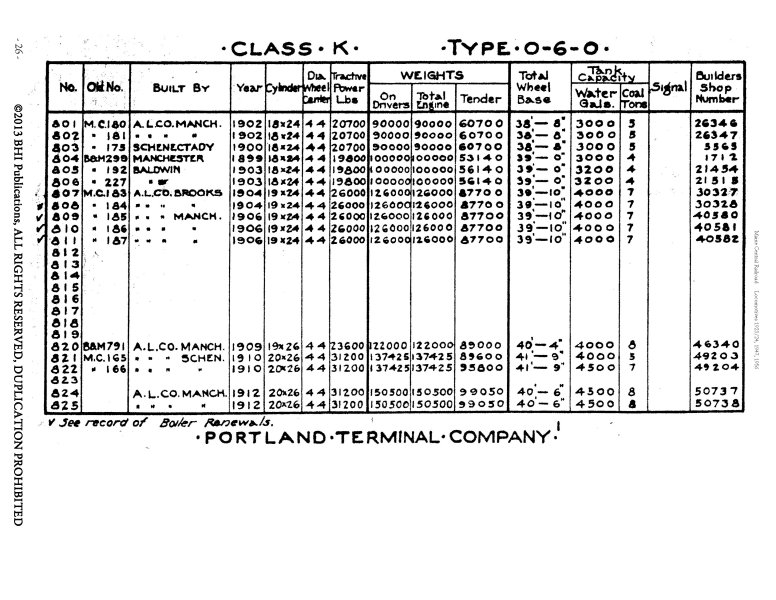

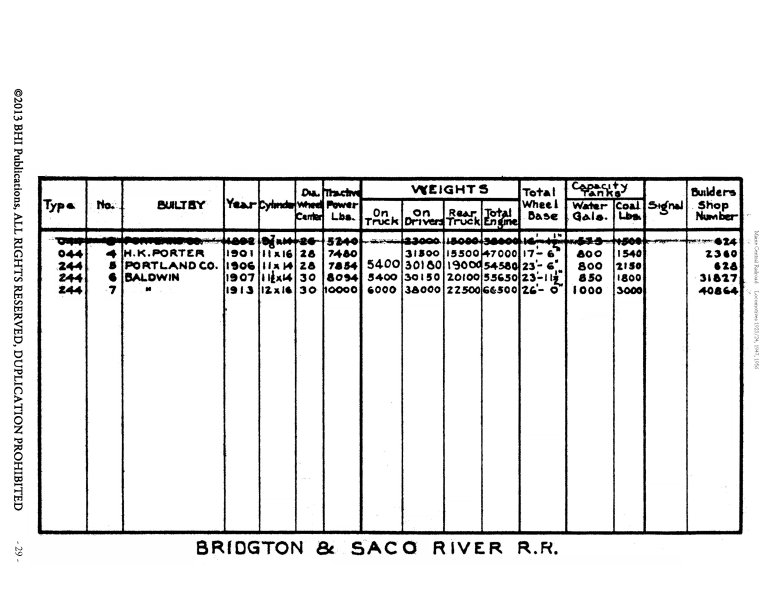

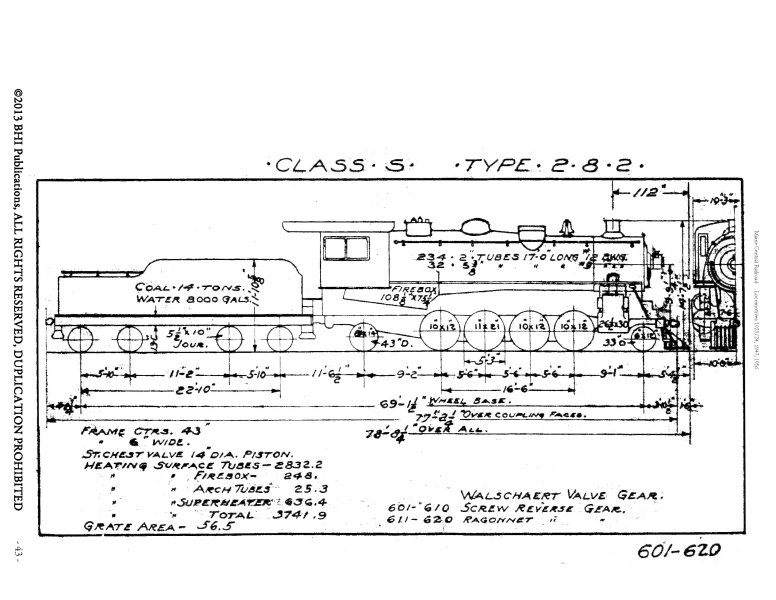

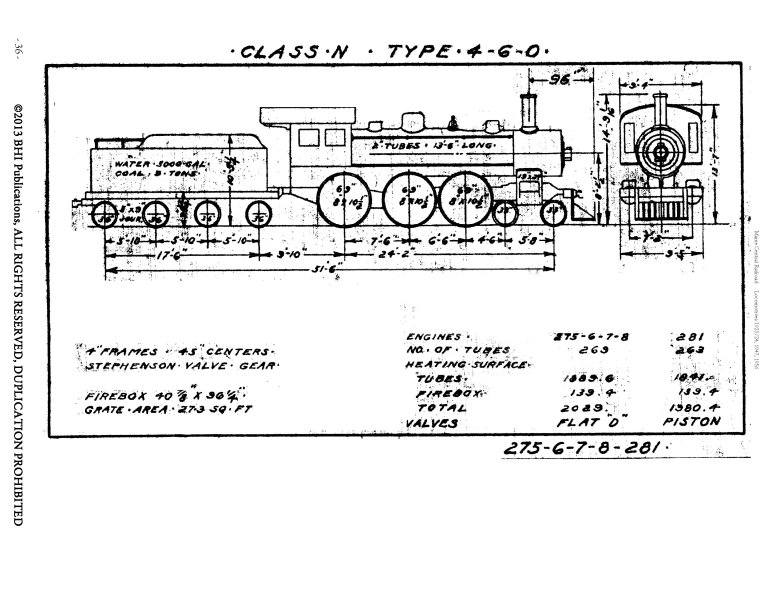

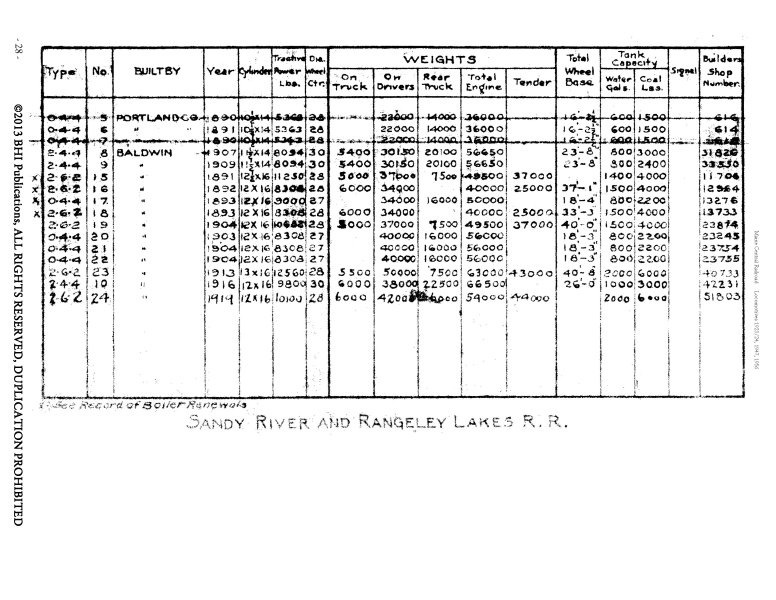

Below are some sample pages from the book.
