Louisville & Nashville

Locomotive Folio Diagrams

1976

A Modeler's Reference

Edited & restored by Tim Mulina, BHI Publications

This book has heavy duty, laminated cardstock covers and is 8 1/2" wide and 11" tall.

Sample pages are below.

MSRP $29.99 + s&h

(s&h is adjusted correct for US Addr. only. Int'l Addr., contact us for correct rate e mail   [email protected] )

This book contains drawings of the equipment that was providing

motive power throughout the L&N rails right up to the time the road merged

with the Seaboard Coast Line in 1982 and then onward under the L&N / SCL

banner until it all was merged into the Chessie System 4 years later.

The drawings are essentially blueprints that a skilled employee could

recognize, repair, and service equipment that was in service.

This data is something that each railroad had on hand for their crews operating

the trains and the shops in the areas concerned. In the case where repairs

were necessary these were used to help restore damaged equipment.

Due to the poor quality of the originals many of the folios required editing.

This book has 58 pages with 121 folios & tables.

BHI front page      Quick Pic Books     Aviation front page     Bookmarks & Magnets

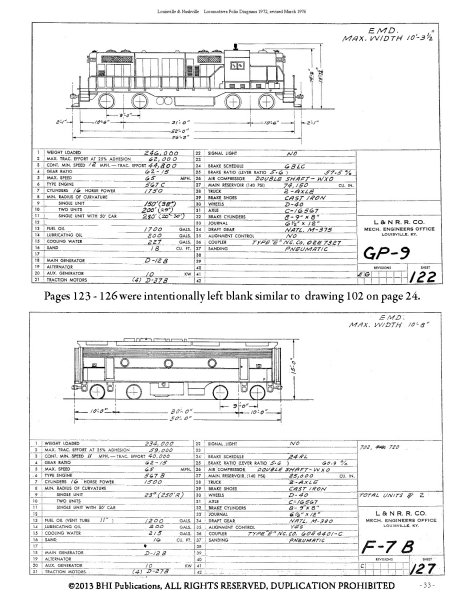

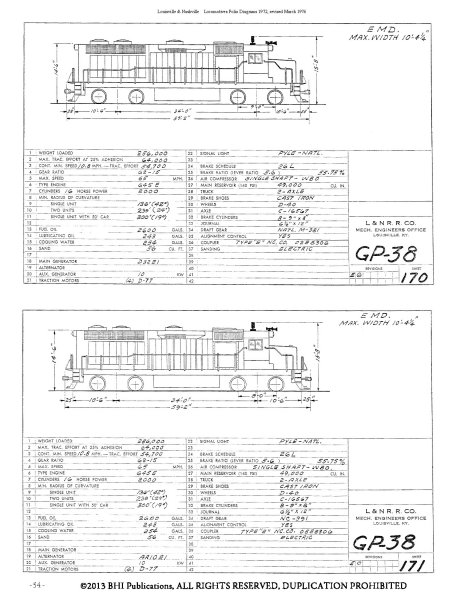

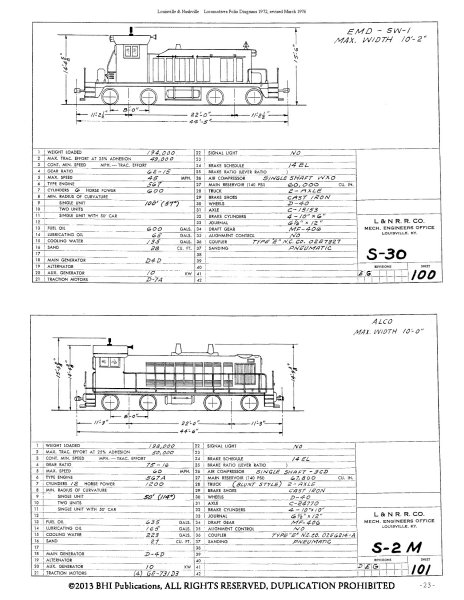

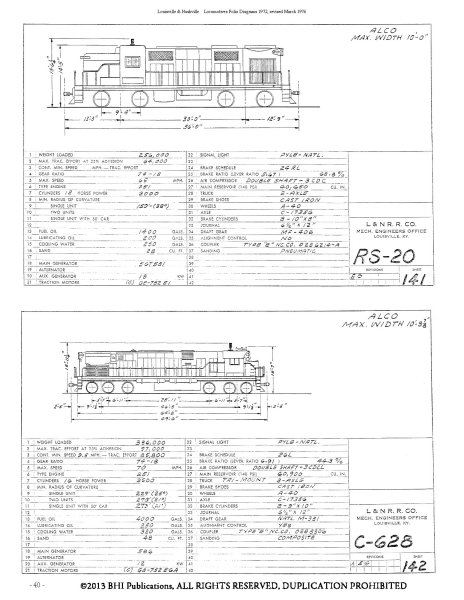

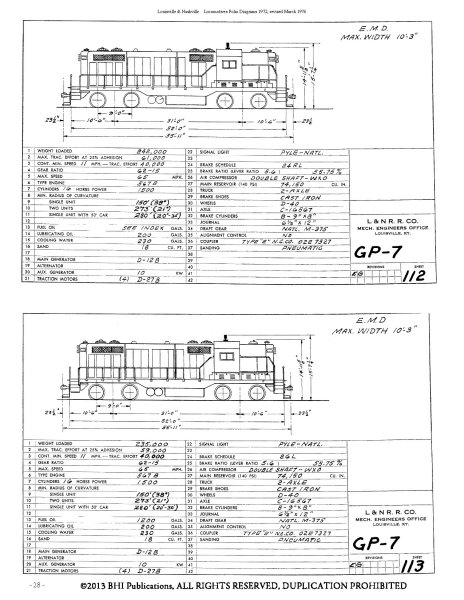

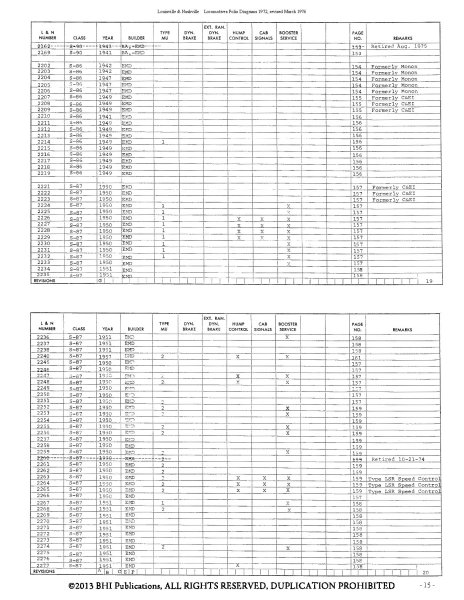

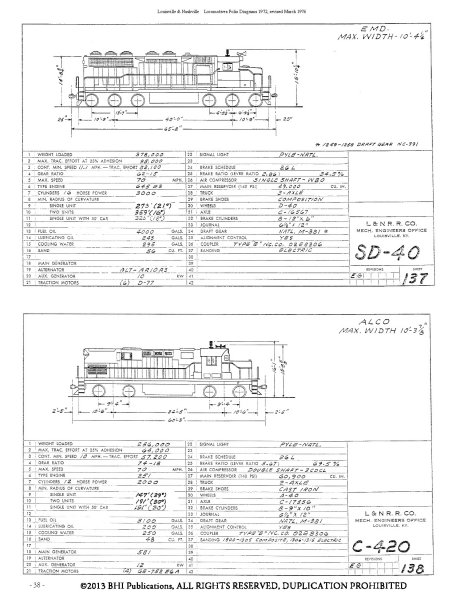

Below are some sample pages from the book.
