Delaware & Hudson

Locomotive Folio Diagrams 1946

A Modeler's Reference

Edited & restored by Tim Mulina, BHI Publications

This book has heavy duty, laminated cardstock covers and is 8 1/2" wide and 11" tall.

Sample pages are below.

MSRP $34.99 + s&h

(s&h is adjusted correct for US addresses only, Int'l orders contact us)

This book contains drawings of the motive power operating on the D&H right at the end of World War 2. The D&H was a very important road in the overall scheme of the war as evidenced by hte transition from Mother Hubbard 2-8-0 type to high speed Pacific and Hudson type locomotives and topped off by the 4-6-6-4's.

The drawings are essentially blueprints that a skilled employee could recognize, repair, and service equipment that was in use. They also provided car number data.

This data is something that each railroad had on hand for their crews operating

the trains and the shops in the areas concerned. In the case where repairs

were necessary these were used to help restore damaged equipment.

Due to the poor quality of the originals many of the folios required editing.

This book has 88 pages with 88 Diagrams, Illustrations, & tables.

BHI front page      Quick Pic Books     Aviation front page     Bookmarks & Magnets

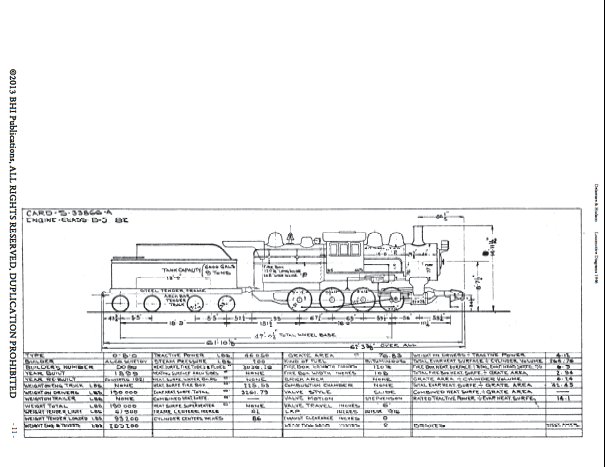

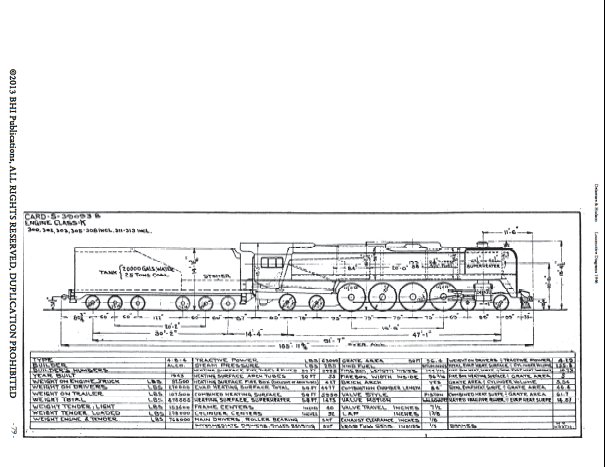

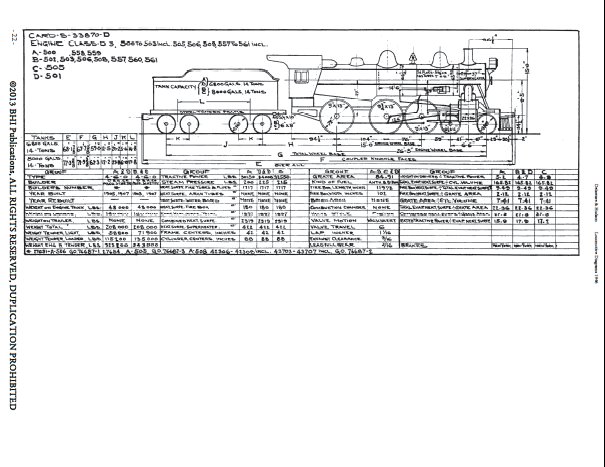

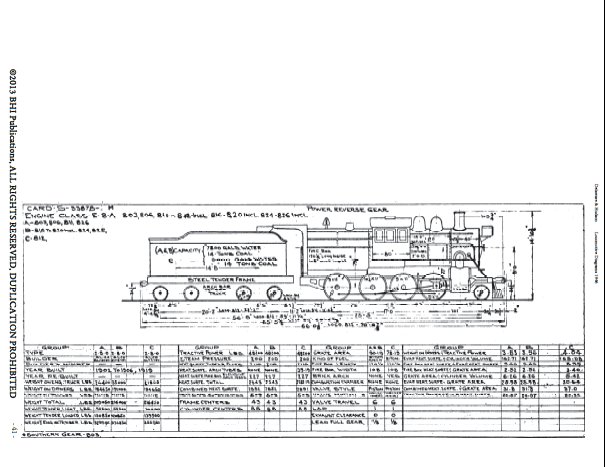

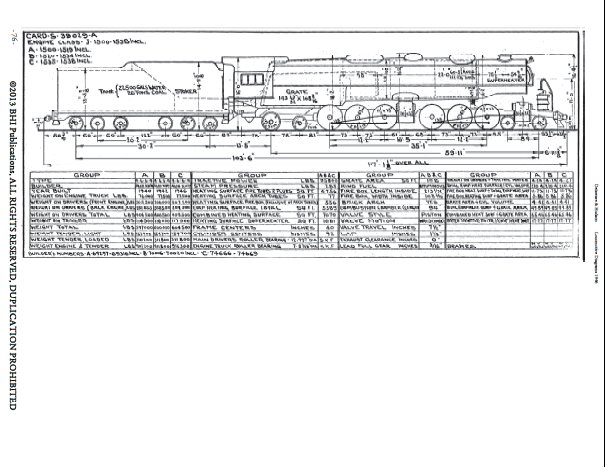

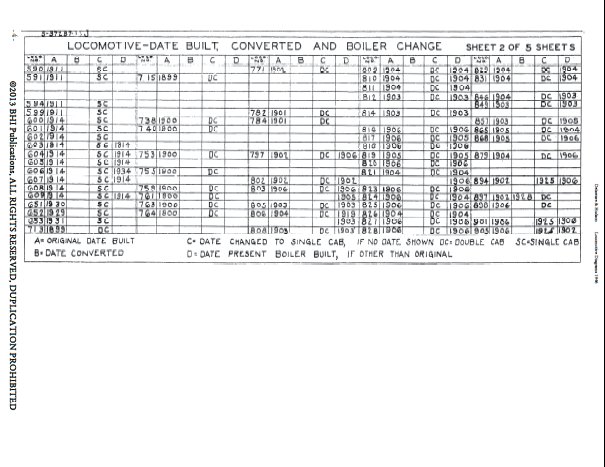

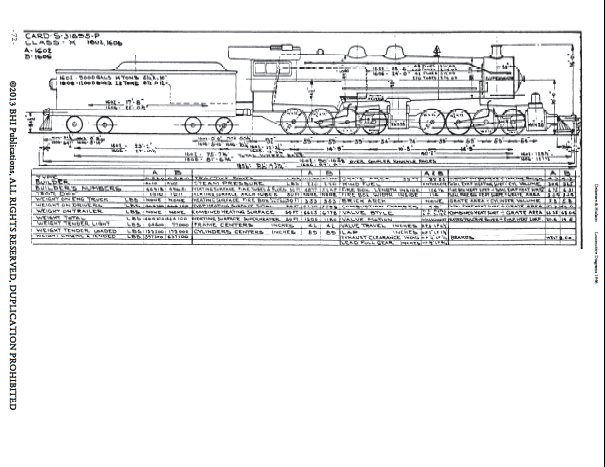

Below are some sample pages from the book.
