Bangor & Aroostook (BAR)

Locomotive Diagrams

1923 & 1938

A Modeler's Reference

Edited & restored by BHI Publications

This book has heavy duty, laminated cardstock covers and is 8 1/2" wide and 11" tall.

Sample pages are below.

MSRP $34.99 + s&h

(s&h is adjusted correct for US Addr. only. Int'l Addr., contact us for correct rate e mail   [email protected] )

This book contains Folio drawings of the Motive Power that was running

on the BAR at the end of the first world war and right before the beginning

of the second. There were some significnat differences between the way

the railroad put these out from the earlier to the later one and we have

included all the aspects that made each unique, inside this book.

The drawings are essentially blueprints that a skilled employee could

recognize, repair, and service equipment that was in service.

This data is something that each railroad had on hand for their crews operating

the trains and the shops in the areas concerned. In the case where repairs

were necessary these were used to help restore damaged equipment.

Due to the poor quality of the originals many of the folios required editing.

This book has 76 pages with 83 illustrations & tables.

BHI front page      Quick Pic Books     Aviation front page     Bookmarks & Magnets

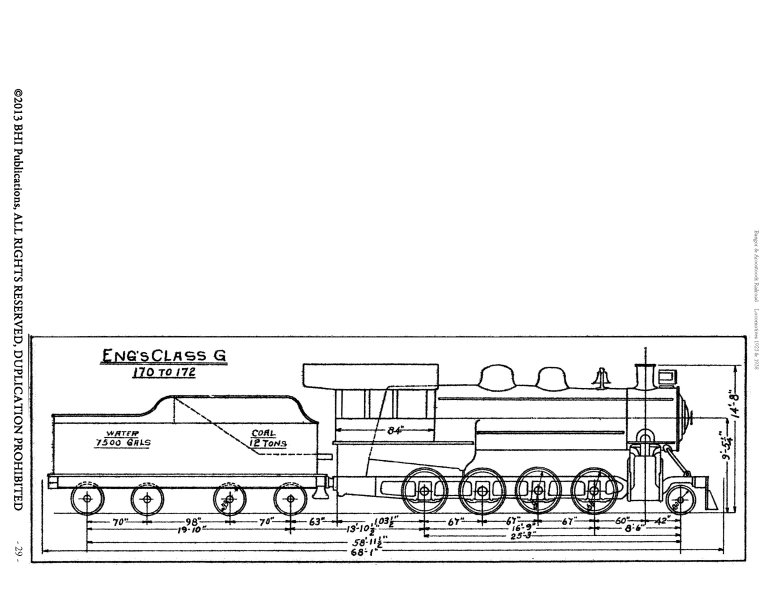

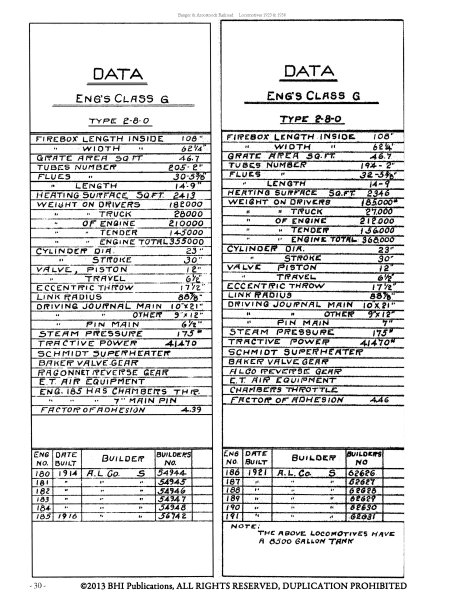

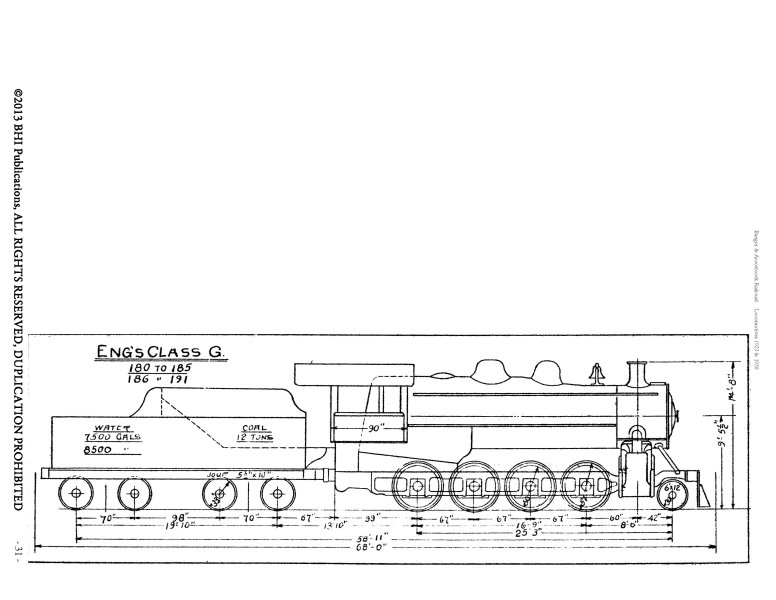

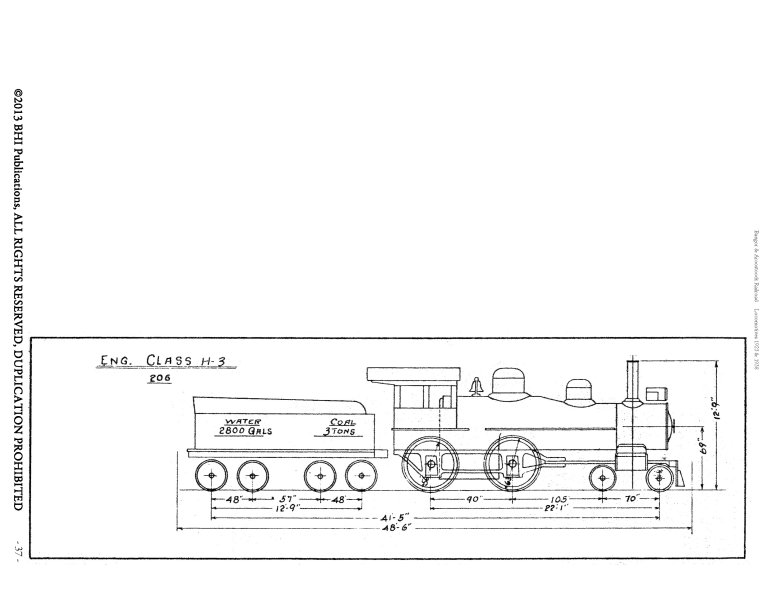

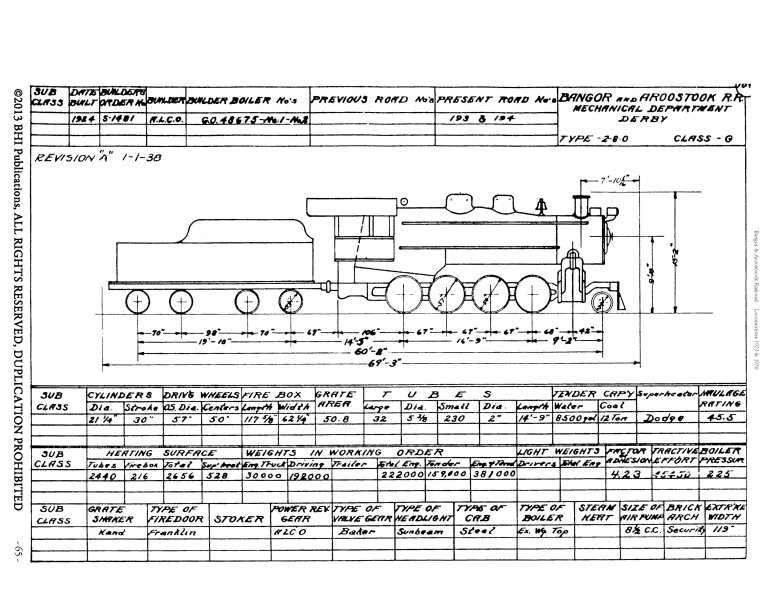

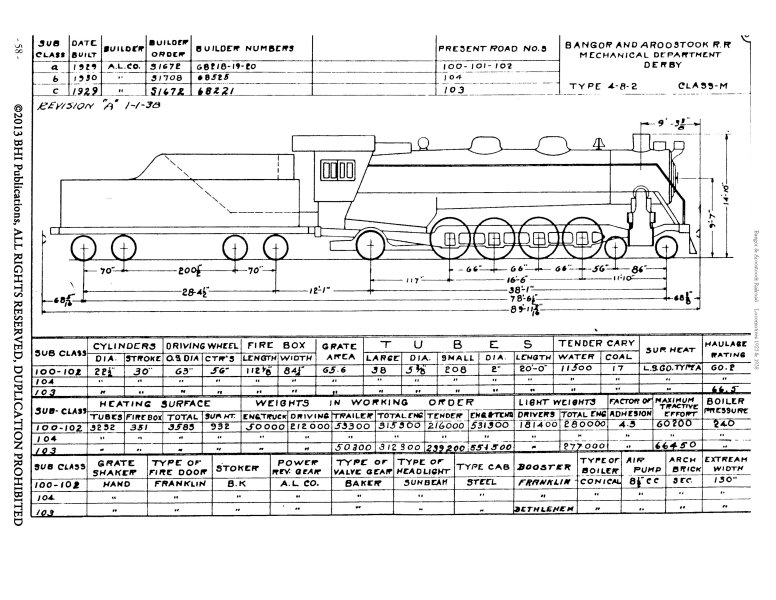

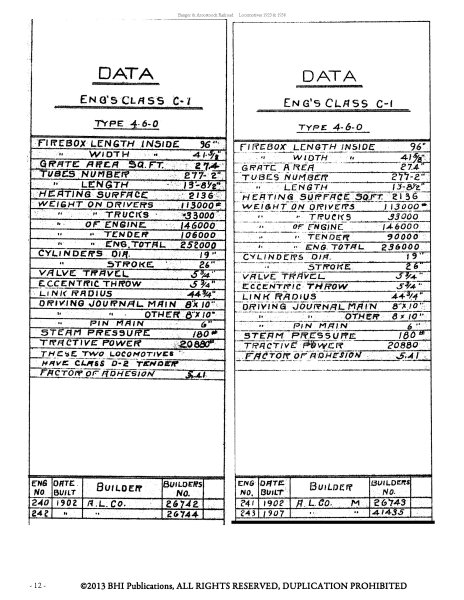

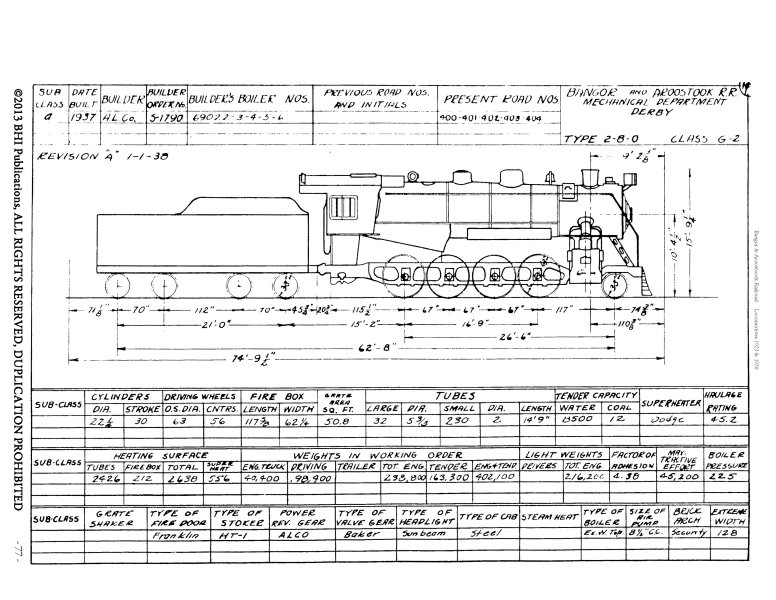

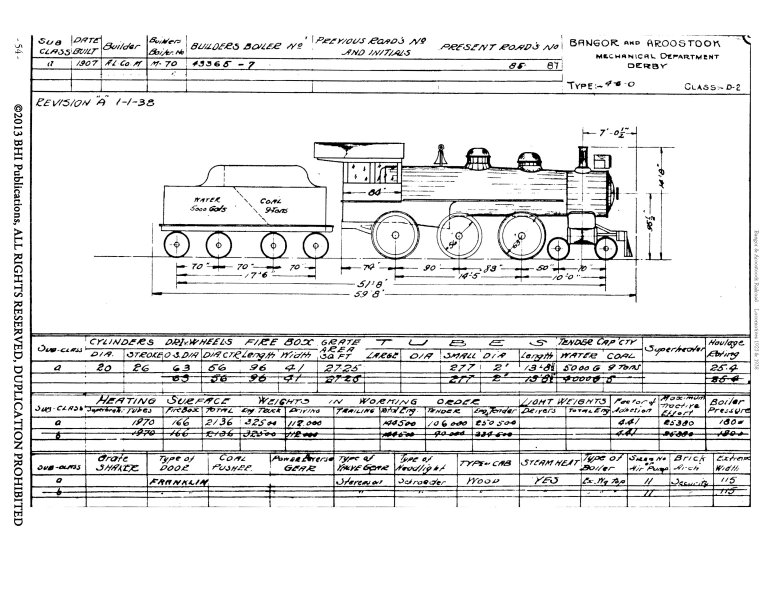

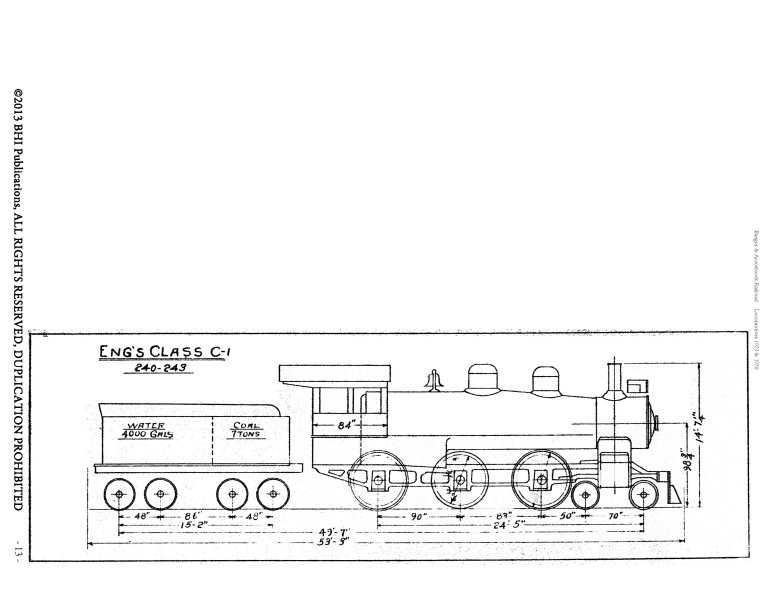

Below are sample pages from the book.
